MODEL 004 · Silicone molds
Dome Shape Mold
150 cavities · 10 × 15 production layout
Product 004 forms up to 150 smooth dome-shaped gummies in one fill. Its regular 10 × 15 layout provides a predictable batch count for production planning.
The mold measures 351 × 428 × 15.5 mm, while each finished dome measures approximately 20 mm in diameter and 14 mm high. Each cavity has a supplied volume of 3 mL and an estimated finished gummy weight of 3.9 g.
$28.0015 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
150Cavities
10 × 15Layout
3 mLCavity volume
3.9 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 004
A smooth dome profile with a 150-piece batch.
Product 004 forms up to 150 smooth dome-shaped gummies in one fill. Its regular 10 × 15 layout provides a predictable batch count for production planning.
The mold measures 351 × 428 × 15.5 mm, while each finished dome measures approximately 20 mm in diameter and 14 mm high. Each cavity has a supplied volume of 3 mL and an estimated finished gummy weight of 3.9 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities150 cavities150 cavities
Layout10 rows × 15 columns10 rows × 15 columns
Mold size351 × 428 × 15.5 mm13.82 × 16.85 × 0.61 in
Gummy sizeØ20 × 14 mmØ0.79 × 0.55 in
Cavity pitch35 × 28 mm1.38 × 1.10 in
Cavity volume3 mL0.10 US fl oz
Mold weight373 g13.16 oz
Estimated gummy weight3.9 g per piece0.14 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture.
Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 15 cavity layout.
01
Batch capacity

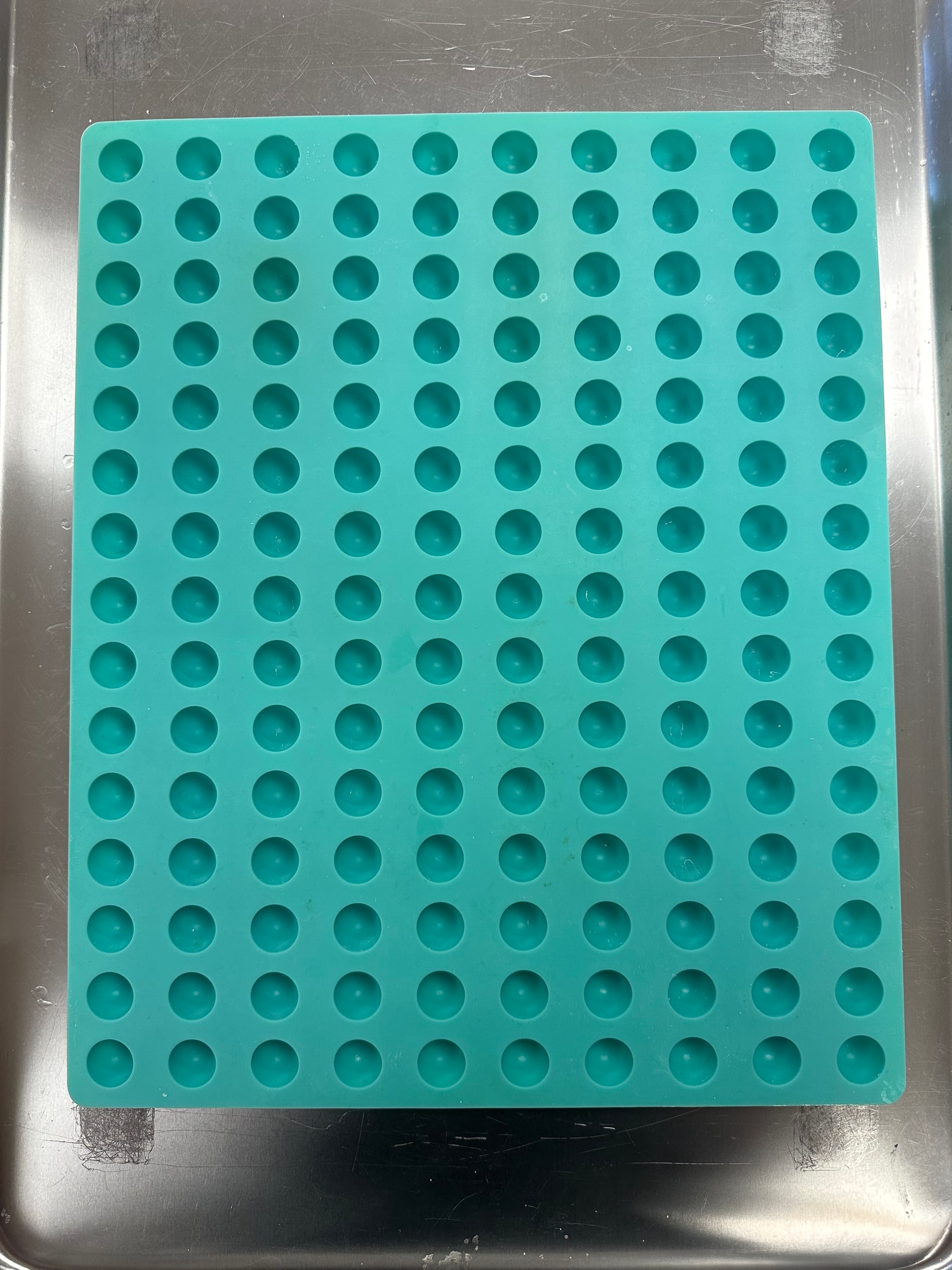

One complete fill produces up to 150 dome-shaped gummies in a regular 10-row by 15-column arrangement.
02
Finished piece
Plan around a 20 mm diameter × 14 mm high dome with a supplied estimated finished weight of 3.9 g.
03
Equipment fit
Check the 351 × 428 mm footprint against your tray, cooling space and depositor setup before ordering.
