MODEL 009 · Silicone molds
Flat-Top Dome Gummy Mold
100 cavities · 10 × 10 production layout
Product 009 forms up to 100 flat-top dome gummies in one fill. Its regular 10 × 10 layout provides a predictable batch count, while the broad circular top and gently tapered sides create a clean, compact finished piece.
The mold measures 365 × 360 × 12.94 mm. Each finished gummy measures approximately 20 mm in diameter × 11.44 mm high, with a supplied cavity volume of 2.8 mL and estimated finished gummy weight of 3.6 g.
$28.0045 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
100Cavities
10 × 10Layout
2.8 mLCavity volume
3.6 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 009
A clean flat-top dome with a 100-piece batch.
Product 009 forms up to 100 flat-top dome gummies in one fill. Its regular 10 × 10 layout provides a predictable batch count, while the broad circular top and gently tapered sides create a clean, compact finished piece.
The mold measures 365 × 360 × 12.94 mm. Each finished gummy measures approximately 20 mm in diameter × 11.44 mm high, with a supplied cavity volume of 2.8 mL and estimated finished gummy weight of 3.6 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities100 cavities100 cavities
Layout10 columns × 10 rows10 columns × 10 rows
Mold size365 × 360 × 12.94 mm14.37 × 14.17 × 0.51 in
Gummy sizeØ20 × 11.44 mmØ0.79 × 0.45 in
Cavity pitch35 × 35 mm1.38 × 1.38 in
Silicone base1.5 mm0.06 in
Cavity volume2.8 mL0.09 US fl oz
Mold weight420 g14.82 oz
Estimated gummy weight3.6 g per piece0.13 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch and base references are taken from the supplied factory drawing.

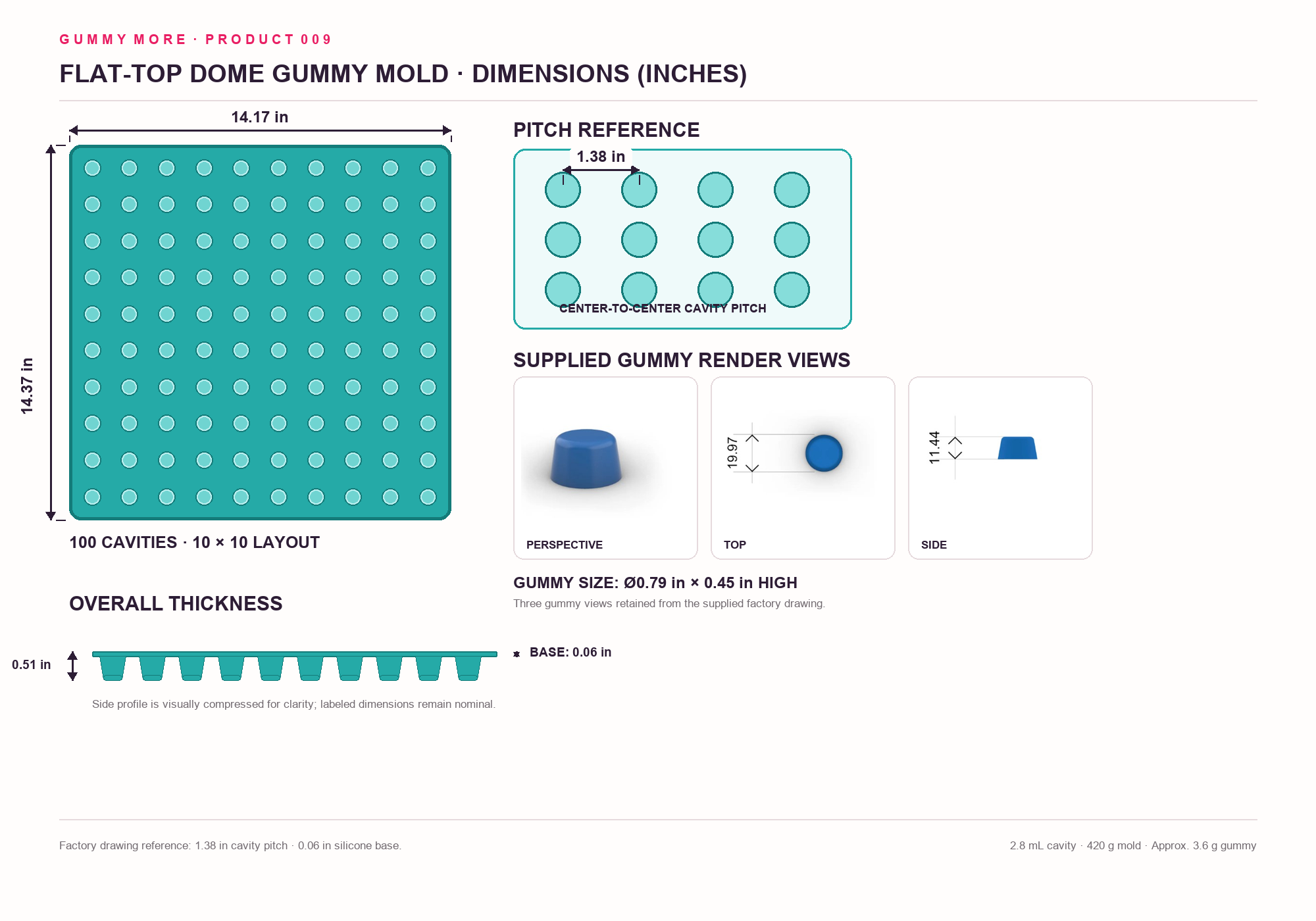

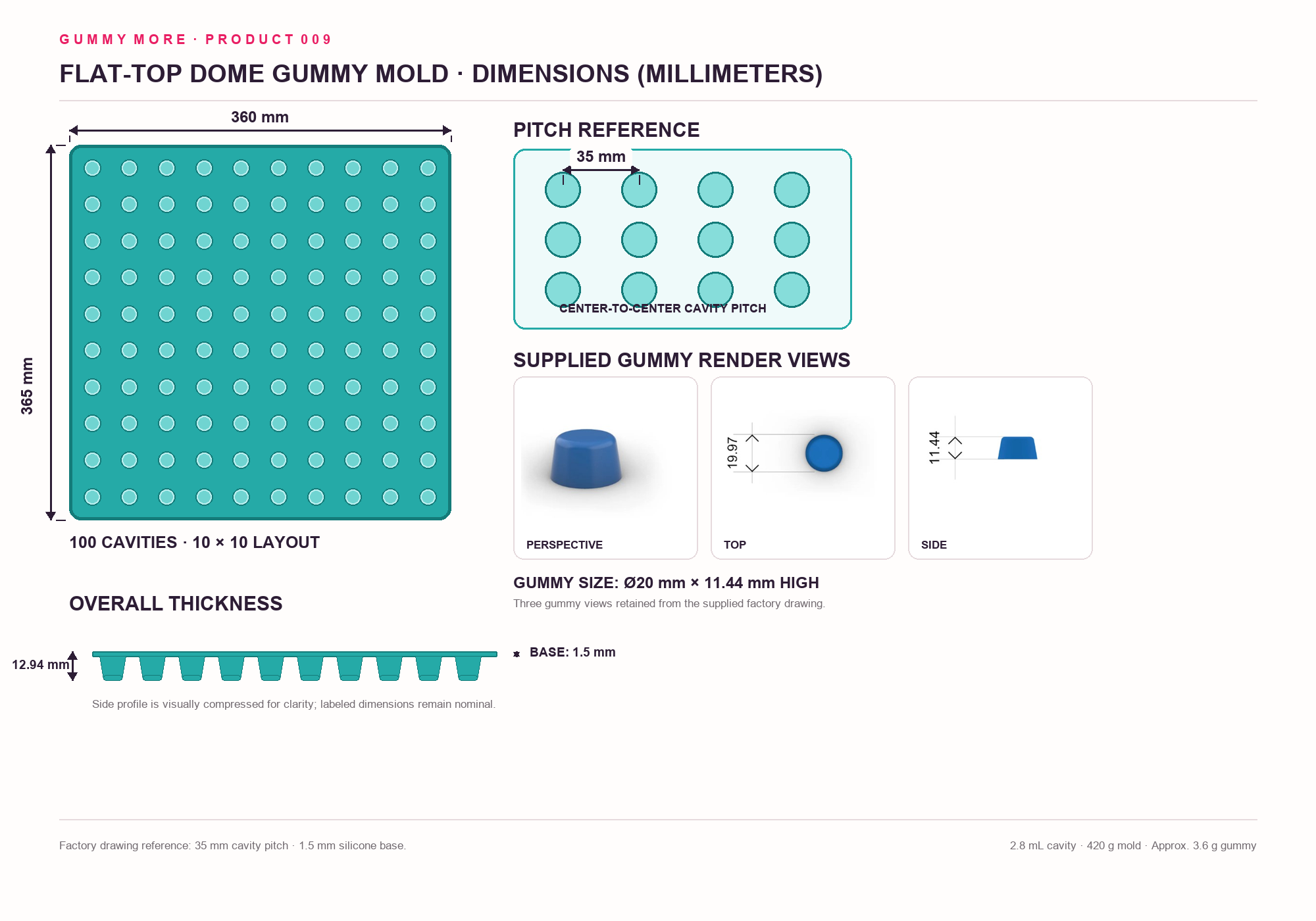

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 10 cavity layout.
01
Batch capacity

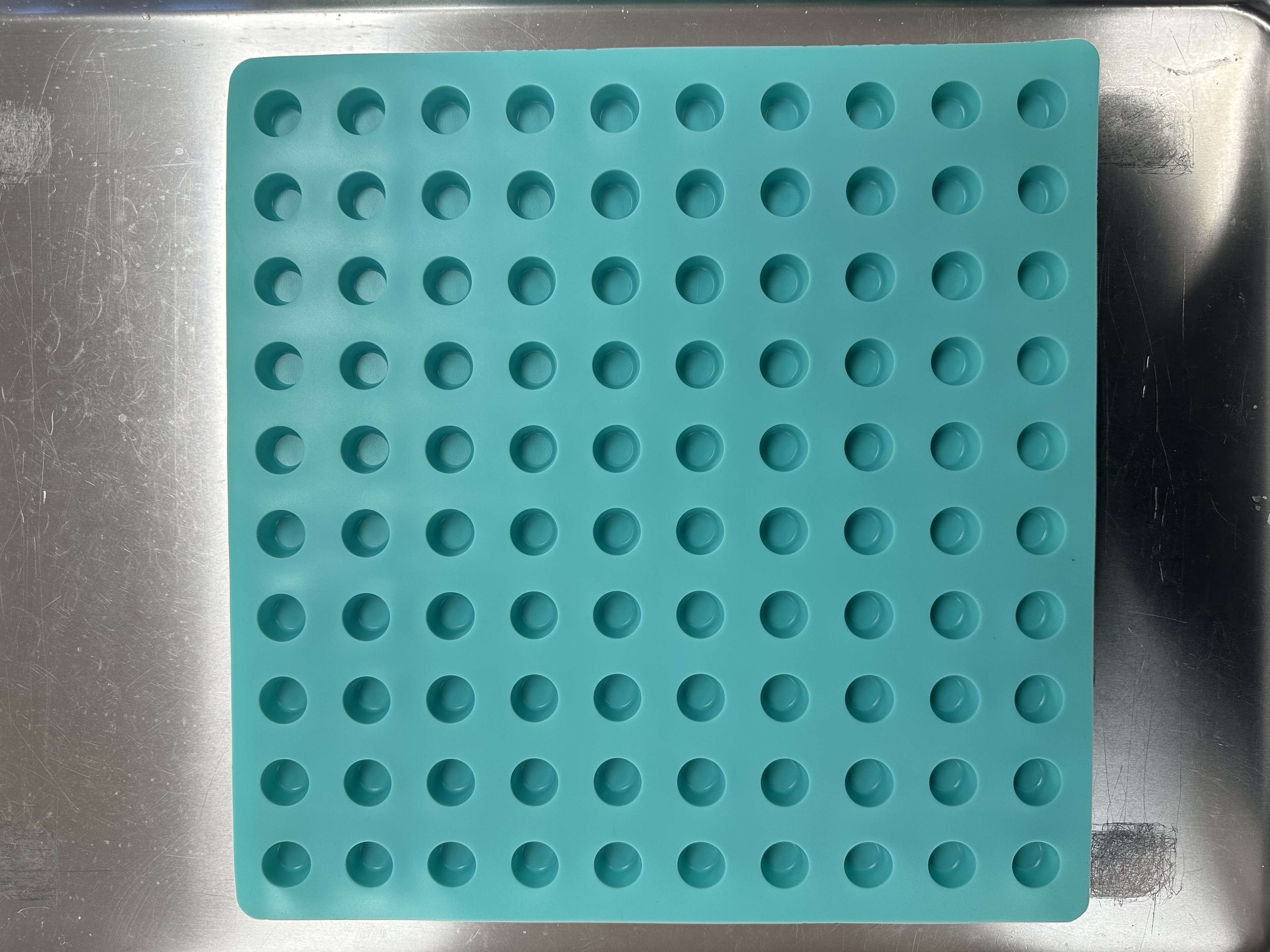

One complete fill produces up to 100 flat-top dome gummies in a regular 10-column by 10-row arrangement.
02
Finished piece
Plan around a Ø20 × 11.44 mm gummy with a supplied estimated finished weight of 3.6 g.
03
Shape detail
The finished piece combines a broad flat circular top with gently tapered sides and a softly rounded lower edge.
04
Equipment fit
Check the 365 × 360 mm footprint against your tray, cooling space and depositor setup before ordering.
