MODEL 010 · Silicone molds
Hexagon Gummy Mold
100 cavities · 10 × 10 production layout
Product 010 forms up to 100 clean six-sided gummies in one fill. The regular 10 × 10 layout gives production teams a predictable batch count, while the flat top and straight hexagonal walls create a crisp geometric finished piece.
The mold measures 358 × 358 × 11.5 mm. Each gummy measures approximately 24.5 mm long × 21 mm wide × 10 mm high, with a supplied cavity volume of 3.9 mL and estimated finished gummy weight of 5 g.
$28.0025 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
100Cavities
10 × 10Layout
3.9 mLCavity volume
5 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 010
A crisp geometric profile with a 100-piece batch.
Product 010 forms up to 100 clean six-sided gummies in one fill. The regular 10 × 10 layout gives production teams a predictable batch count, while the flat top and straight hexagonal walls create a crisp geometric finished piece.
The mold measures 358 × 358 × 11.5 mm. Each gummy measures approximately 24.5 mm long × 21 mm wide × 10 mm high, with a supplied cavity volume of 3.9 mL and estimated finished gummy weight of 5 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities100 cavities100 cavities
Layout10 columns × 10 rows10 columns × 10 rows
Mold size358 × 358 × 11.5 mm14.09 × 14.09 × 0.45 in
Gummy size24.5 × 21 × 10 mm0.96 × 0.83 × 0.39 in
Cavity pitch35 × 35 mm1.38 × 1.38 in
Silicone base1.5 mm0.06 in
Cavity volume3.9 mL0.13 US fl oz
Mold weight400 g14.11 oz
Estimated gummy weight5 g per piece0.18 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch and base references are taken from the supplied factory drawing.

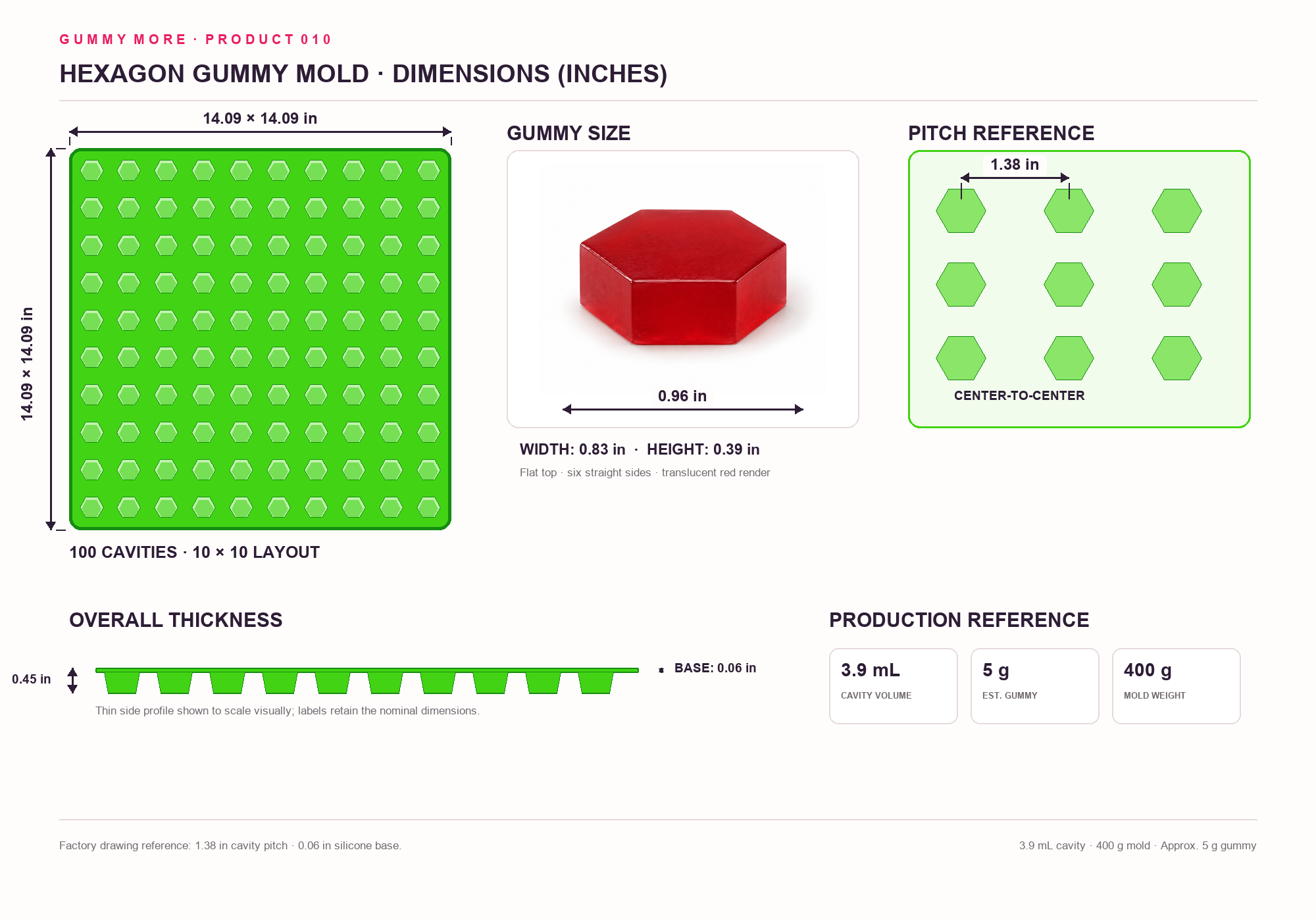

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 10 cavity layout.
01
Batch capacity

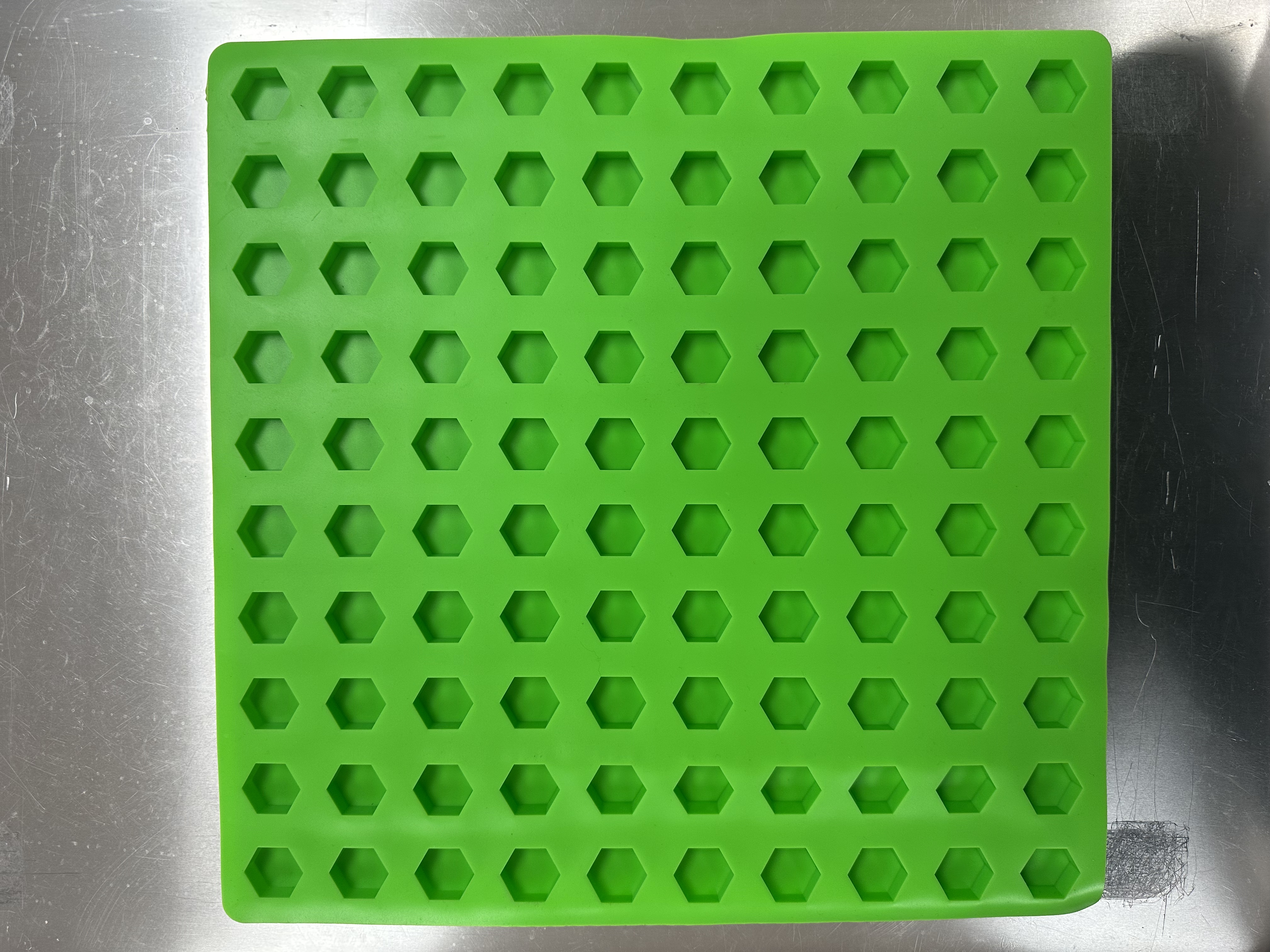

One complete fill produces up to 100 hexagonal gummies in a regular 10-column by 10-row arrangement.
02

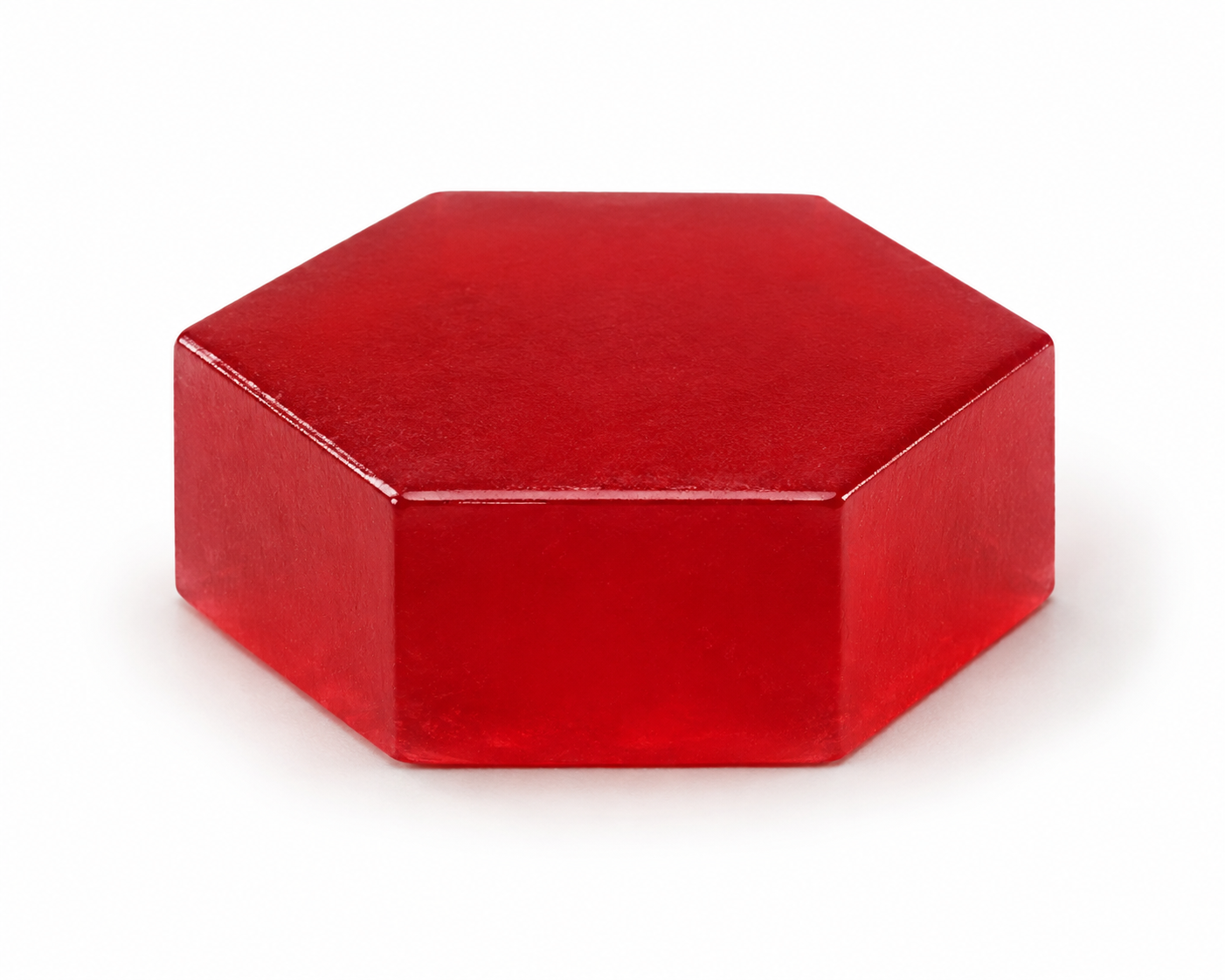

Finished piece
Plan around a 24.5 × 21 × 10 mm gummy with a supplied estimated finished weight of 5 g.
03

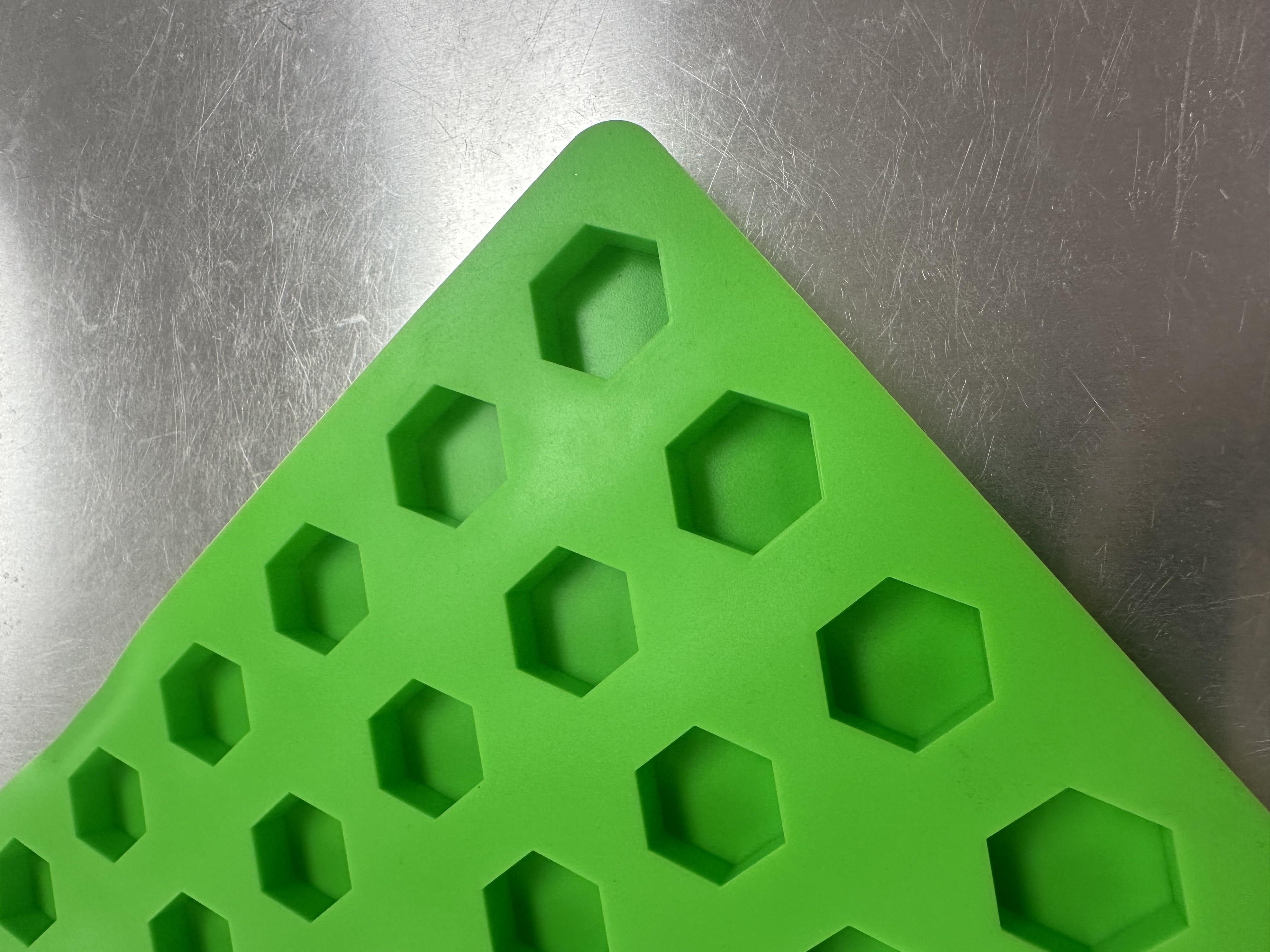

Shape detail
The finished piece has a flat top and six straight sides for a clean, recognizable geometric profile.
04
Equipment fit
Check the 358 × 358 mm footprint against your tray, cooling space and depositor setup before ordering.
