MODEL 013 · Silicone molds
Mushroom Shape Gummy Mold
135 cavities · 9 × 15 production layout
Product 013 forms up to 135 mushroom-shaped gummies in one fill. Its regular 9 × 15 layout supports predictable batch planning, while the cap, stem and recessed decorative details create a playful finished piece with a recognizable silhouette.
The mold measures 398 × 264 × 13.9 mm. Each finished gummy measures approximately 22.2 mm long × 24.8 mm wide × 12.4 mm thick, with a supplied cavity volume of 4.6 mL and estimated finished gummy weight of 4.7 g.
$45.0080 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
135Cavities
9 × 15Layout
4.6 mLCavity volume
4.7 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 013
A playful mushroom profile built for 135-piece production batches.
Product 013 forms up to 135 mushroom-shaped gummies in one fill. Its regular 9 × 15 layout supports predictable batch planning, while the cap, stem and recessed decorative details create a playful finished piece with a recognizable silhouette.
The mold measures 398 × 264 × 13.9 mm. Each finished gummy measures approximately 22.2 mm long × 24.8 mm wide × 12.4 mm thick, with a supplied cavity volume of 4.6 mL and estimated finished gummy weight of 4.7 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities135 cavities135 cavities
Layout9 columns × 15 rows9 columns × 15 rows
Mold size398 × 264 × 13.9 mm15.67 × 10.39 × 0.55 in
Gummy size22.2 × 24.8 × 12.4 mm0.87 × 0.98 × 0.49 in
Cavity pitch28.8 × 26.2 mm1.13 × 1.03 in
Nominal cavity gap4 mm0.16 in
Silicone base1.5 mm0.06 in
Cavity volume4.6 mL0.16 US fl oz
Mold weight900 g31.75 oz
Estimated gummy weight4.7 g per piece0.17 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch, gap and base references are taken from the supplied factory drawing.

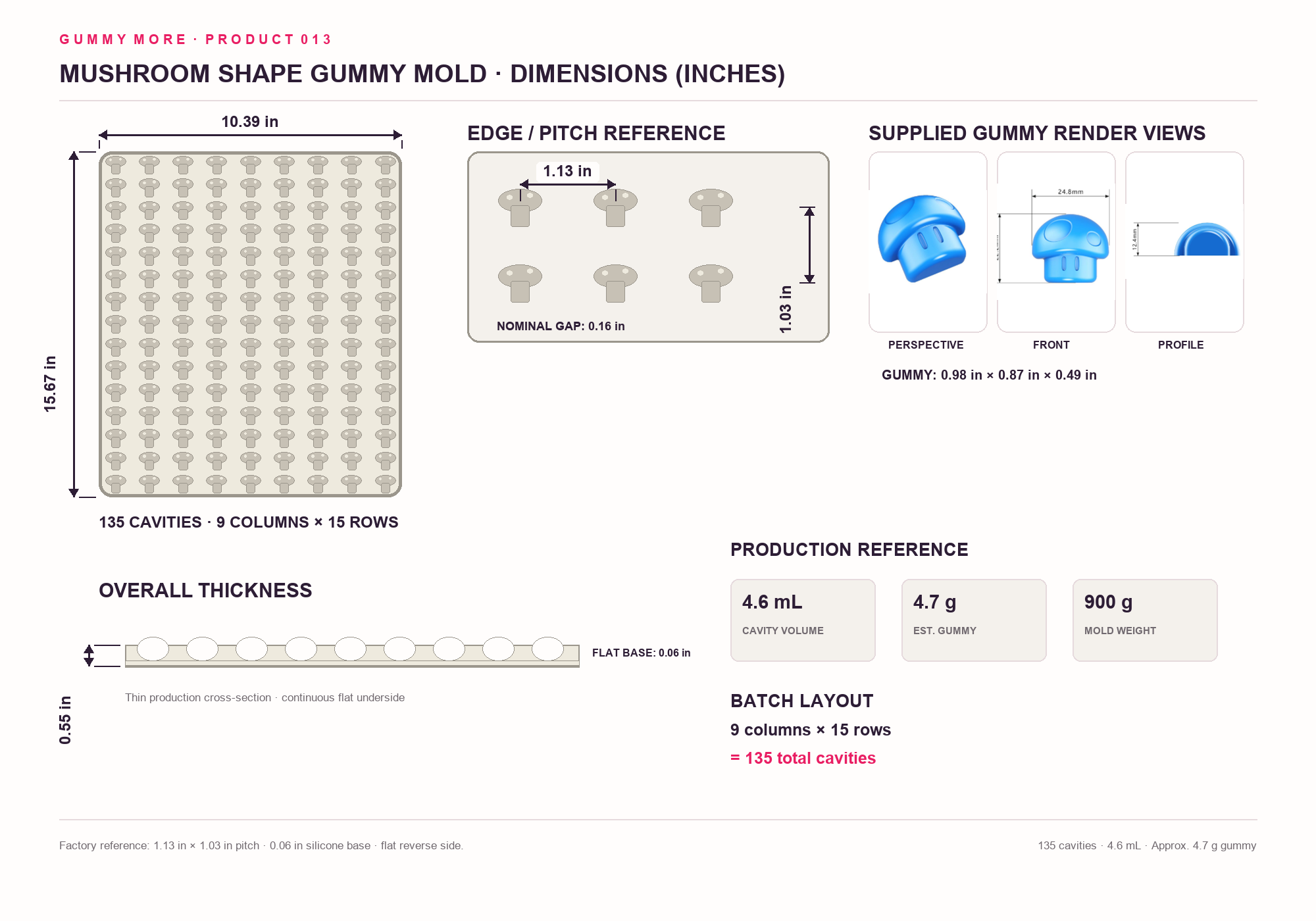

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 9 × 15 cavity layout.
01
Batch capacity

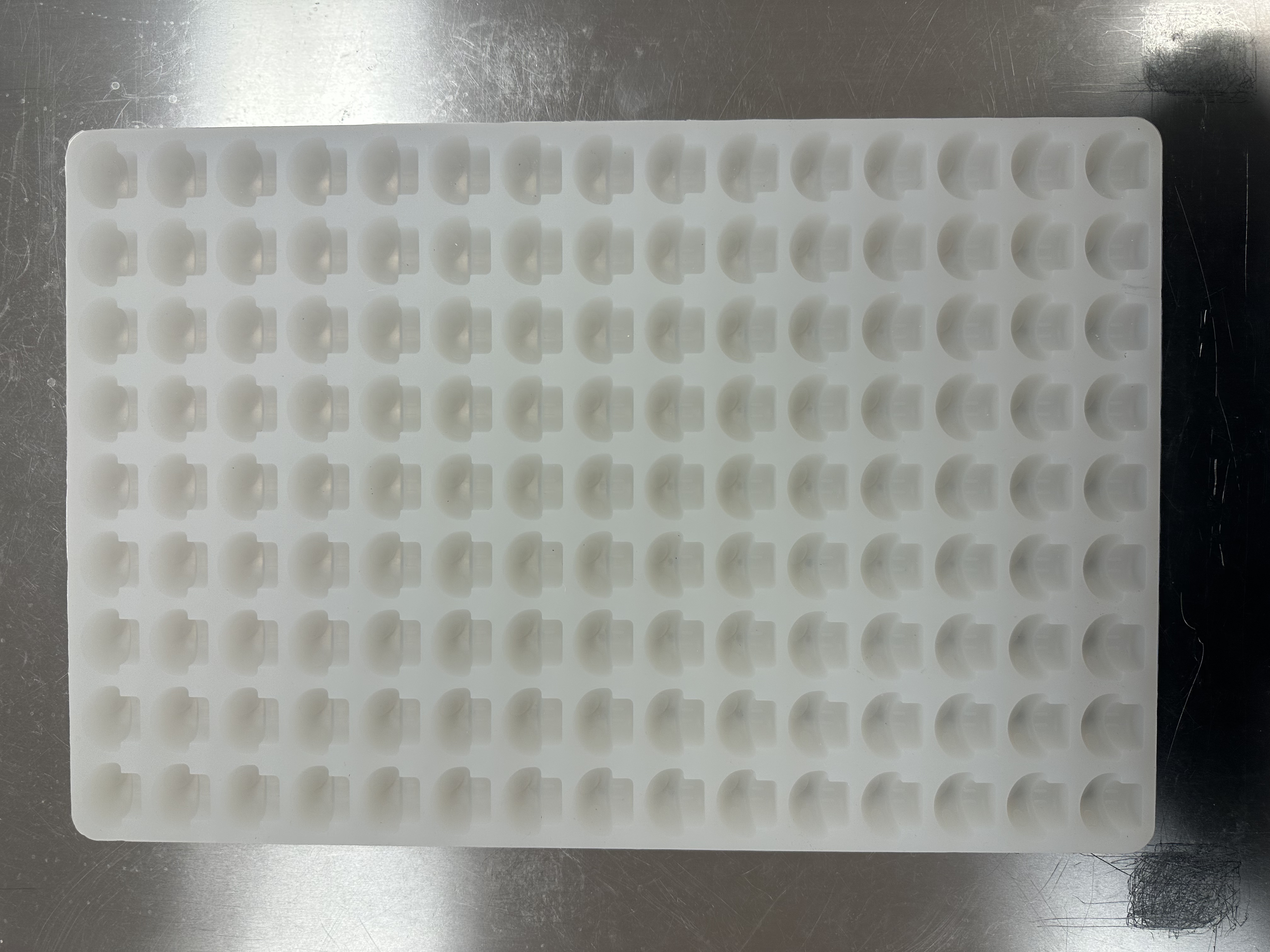

One complete fill produces up to 135 mushroom gummies in a regular 9-column by 15-row arrangement.
02
Finished piece
Plan around a 22.2 × 24.8 × 12.4 mm gummy with a supplied estimated finished weight of 4.7 g.
03
Mushroom detail

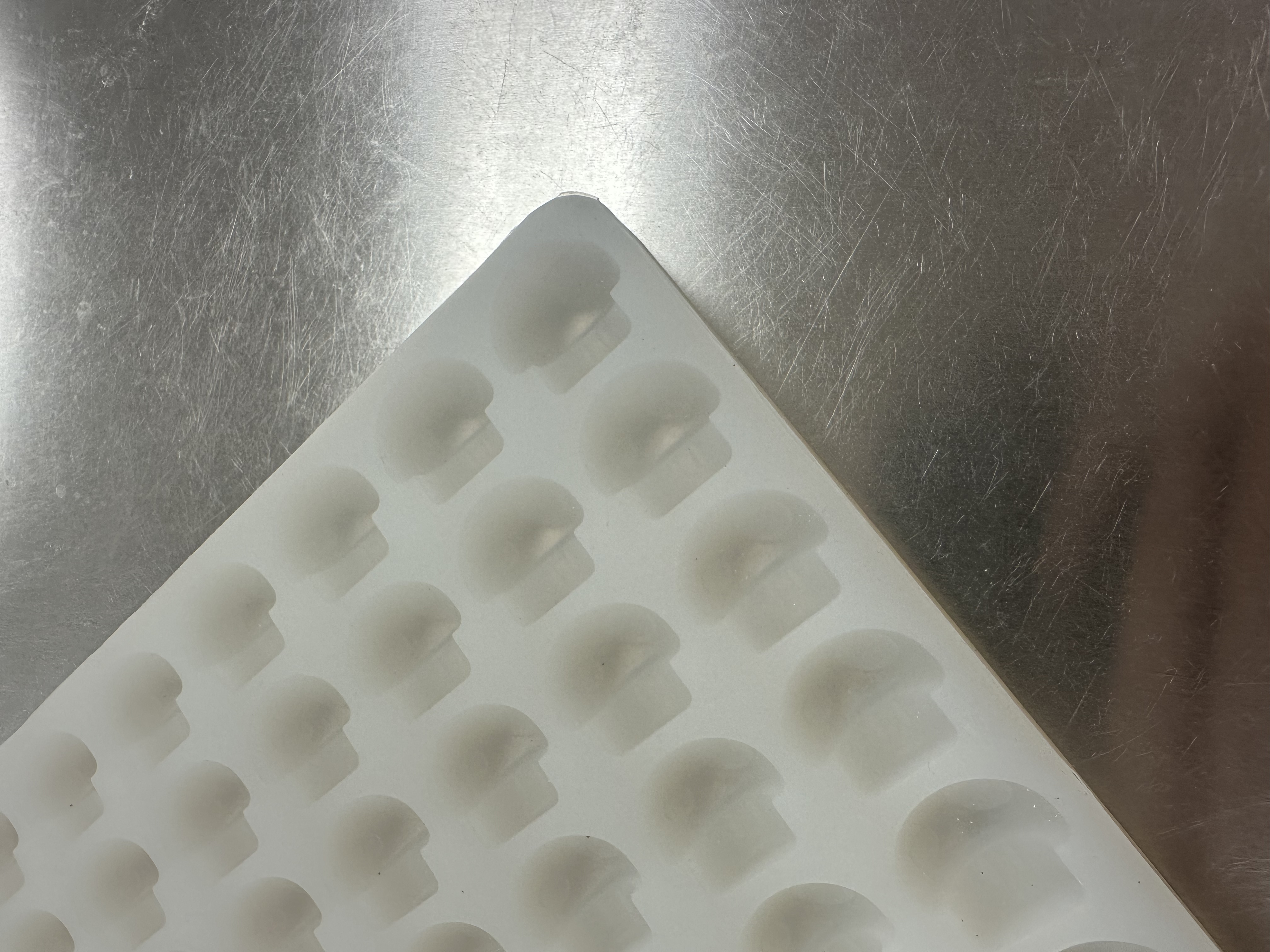

The cap, stem and recessed accents create a recognizable mushroom-shaped finished piece.
04
Flat backing

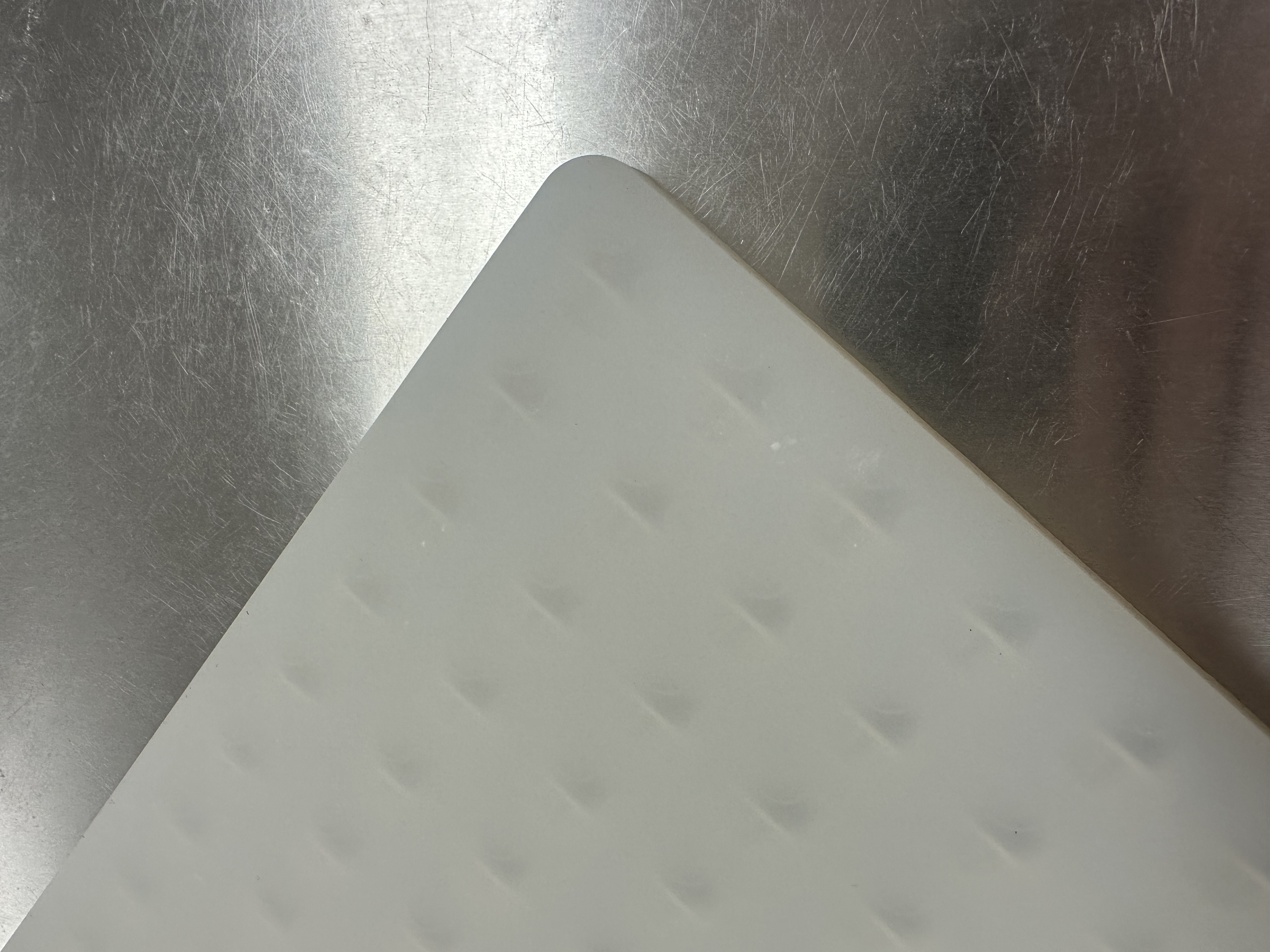

The mold has a continuous, flat reverse side that supports the complete cavity field.
05
Equipment fit
Check the 398 × 264 mm footprint against your tray, cooling space and depositor setup before ordering.
