MODEL 006 · Silicone molds
Poo Shape

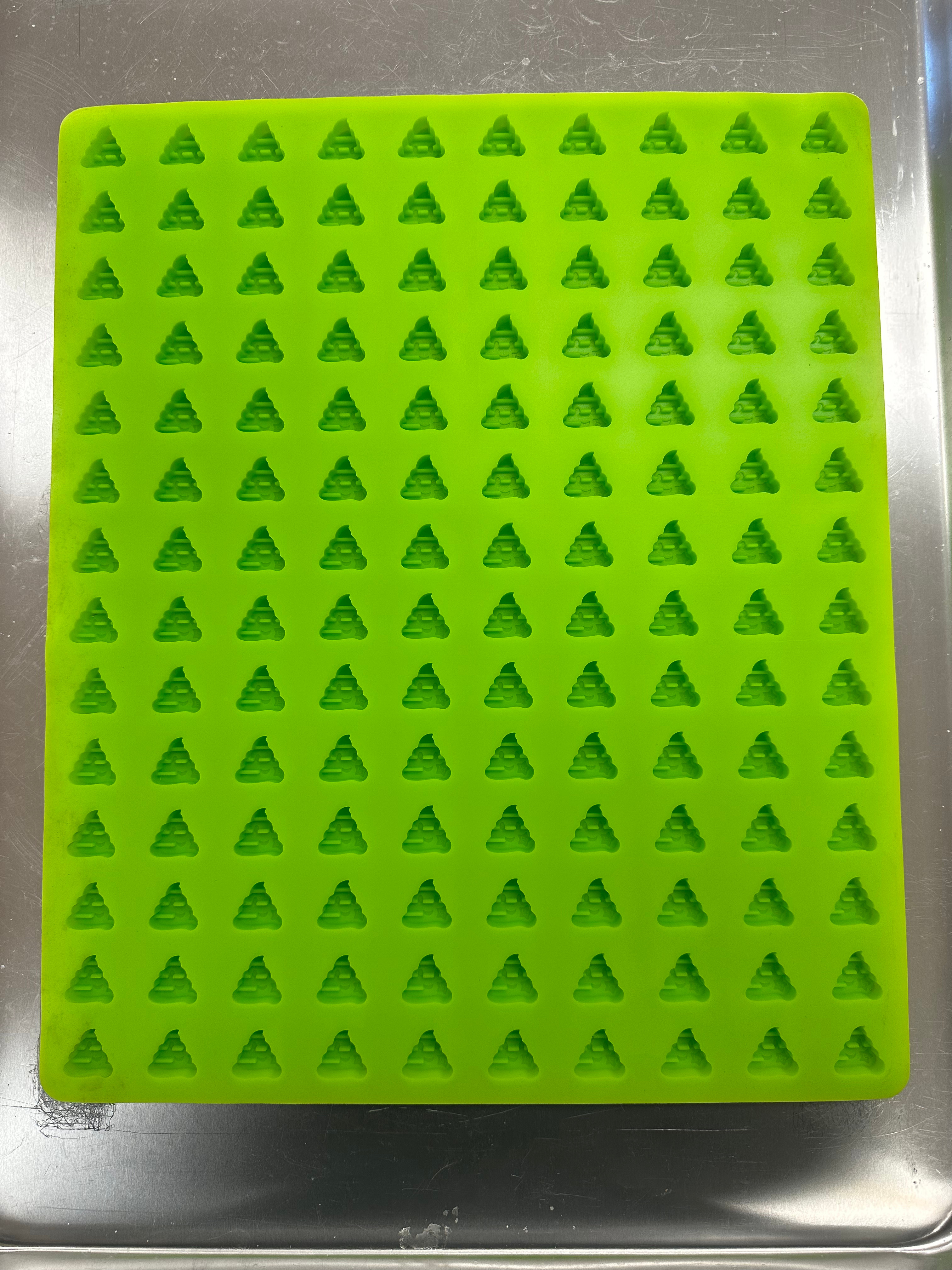

140 cavities · 10 × 14 production layout
Product 006 forms up to 140 character-shaped poo gummies in one fill. The regular 10 × 14 layout provides a predictable batch count, while the supplied factory renders show the layered swirl, facial details and small plaque feature on the finished piece.
The mold measures 419 × 348 × 10.7 mm. Each finished gummy measures approximately 20 × 19 × 9.2 mm, with a supplied cavity volume of 2 mL and estimated finished gummy weight of 2.6 g.
$28.0030 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
140Cavities
10 × 14Layout
2 mLCavity volume
2.6 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 006
A playful character profile with a 140-piece batch.
Product 006 forms up to 140 character-shaped poo gummies in one fill. The regular 10 × 14 layout provides a predictable batch count, while the supplied factory renders show the layered swirl, facial details and small plaque feature on the finished piece.
The mold measures 419 × 348 × 10.7 mm. Each finished gummy measures approximately 20 × 19 × 9.2 mm, with a supplied cavity volume of 2 mL and estimated finished gummy weight of 2.6 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities140 cavities140 cavities
Layout10 columns × 14 rows10 columns × 14 rows
Mold size419 × 348 × 10.7 mm16.50 × 13.70 × 0.42 in
Gummy size20 × 19 × 9.2 mm0.79 × 0.75 × 0.36 in
Cavity pitch34.22 × 29.22 mm1.35 × 1.15 in
Nominal edge reference14 mm horizontal · 10 mm vertical0.55 in horizontal · 0.39 in vertical
Cavity volume2 mL0.07 US fl oz
Mold weight430 g15.17 oz
Estimated gummy weight2.6 g per piece0.09 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch and edge references are taken from the supplied factory drawing.

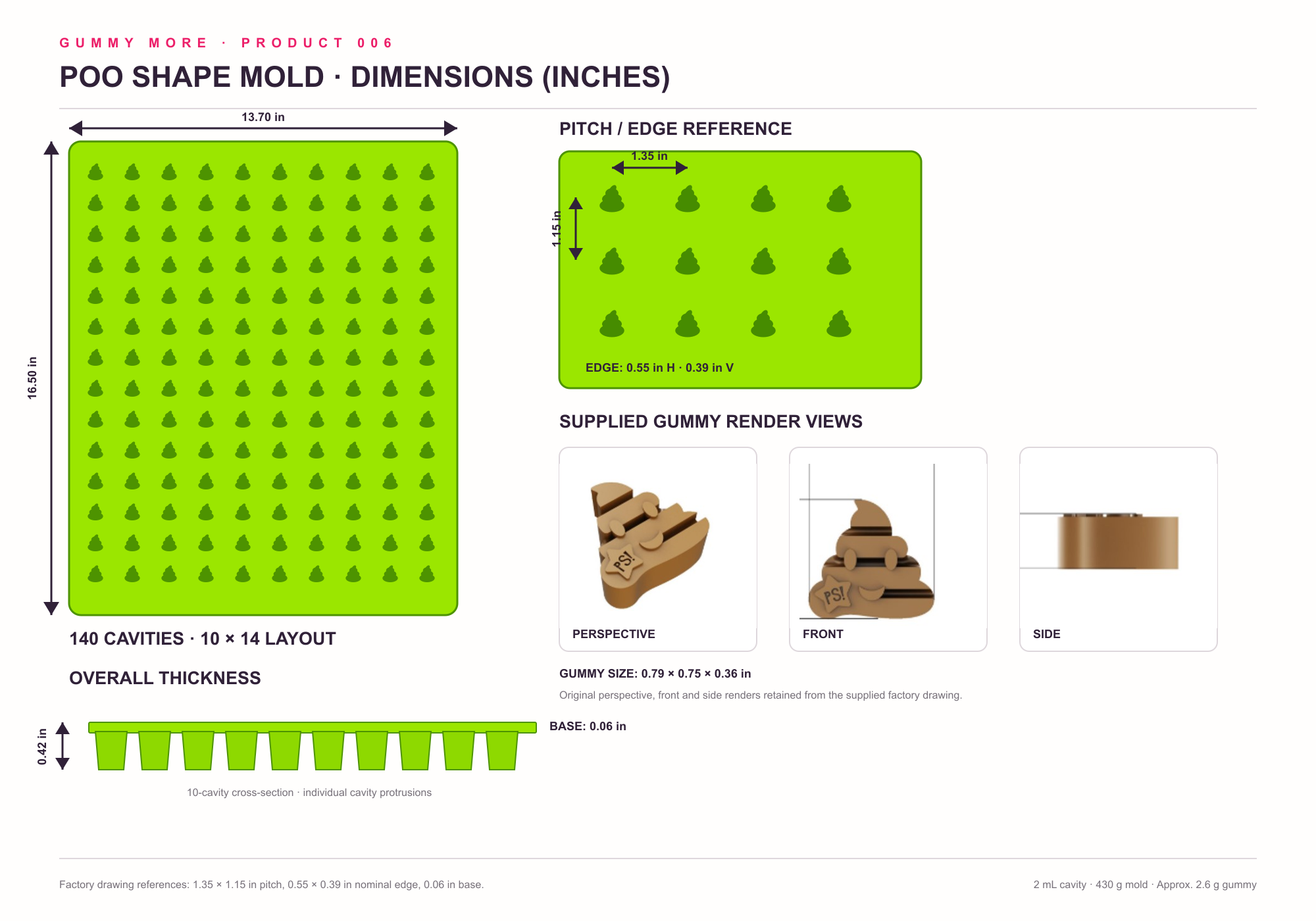

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 14 cavity layout.
01
Batch capacity
One complete fill produces up to 140 poo-shaped gummies in a regular 10-column by 14-row arrangement.
02
Finished piece
Plan around a 20 × 19 × 9.2 mm gummy with a supplied estimated finished weight of 2.6 g.
03

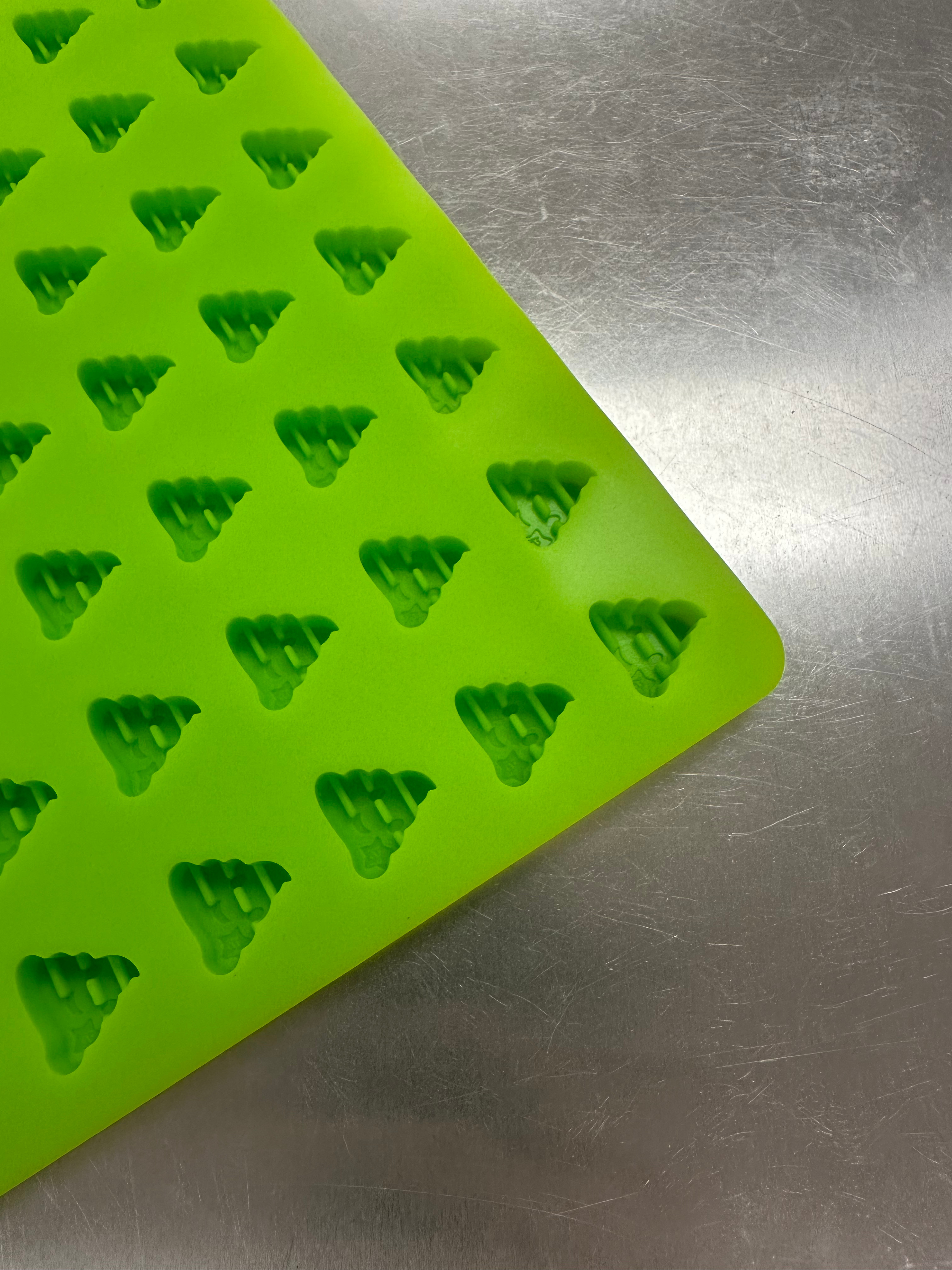

Shape detail
The supplied factory render shows the layered swirl, facial features and small plaque detail that transfer to the finished gummy.
04
Equipment fit
Check the 419 × 348 mm footprint against your tray, cooling space and depositor setup before ordering.
