MODEL 011 · Silicone molds
Splittable Square Gummy Mold
165 cavities · 15 × 11 production layout
Product 011 forms up to 165 square gummies in one fill. A diagonal score line across every cavity gives each finished gummy a clear two-section design while the regular 15 × 11 layout keeps batch counts predictable.
The mold measures 380 × 289 × 11.5 mm. Each finished gummy measures approximately 21 × 21 × 10 mm, with a supplied cavity volume of 4.1 mL and estimated finished gummy weight of 5.3 g.
$42.0050 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
165Cavities
15 × 11Layout
4.1 mLCavity volume
5.3 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 011
A scored square designed for flexible portion presentation.
Product 011 forms up to 165 square gummies in one fill. A diagonal score line across every cavity gives each finished gummy a clear two-section design while the regular 15 × 11 layout keeps batch counts predictable.
The mold measures 380 × 289 × 11.5 mm. Each finished gummy measures approximately 21 × 21 × 10 mm, with a supplied cavity volume of 4.1 mL and estimated finished gummy weight of 5.3 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities165 cavities165 cavities
Layout15 columns × 11 rows15 columns × 11 rows
Mold size380 × 289 × 11.5 mm14.96 × 11.38 × 0.45 in
Gummy size21 × 21 × 10 mm0.83 × 0.83 × 0.39 in
Cavity pitch24.5 × 26 mm0.96 × 1.02 in
Diagonal score lineApprox. 1 mm wideApprox. 0.04 in wide
Silicone base1.5 mm0.06 in
Cavity volume4.1 mL0.14 US fl oz
Mold weight714 g25.19 oz
Estimated gummy weight5.3 g per piece0.19 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch, score-line and base references are taken from the supplied factory drawing.

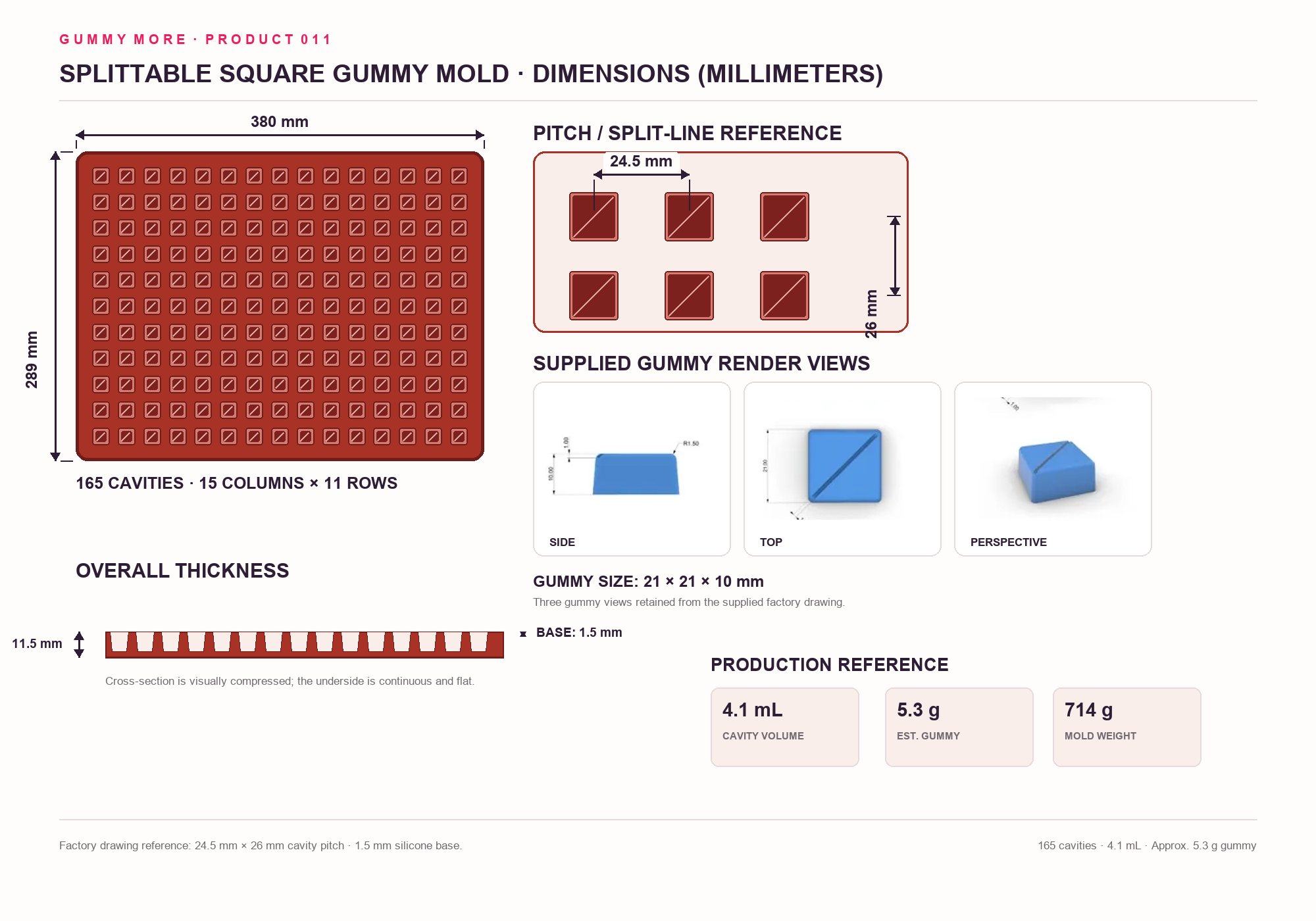

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 15 × 11 cavity layout.
01
Batch capacity

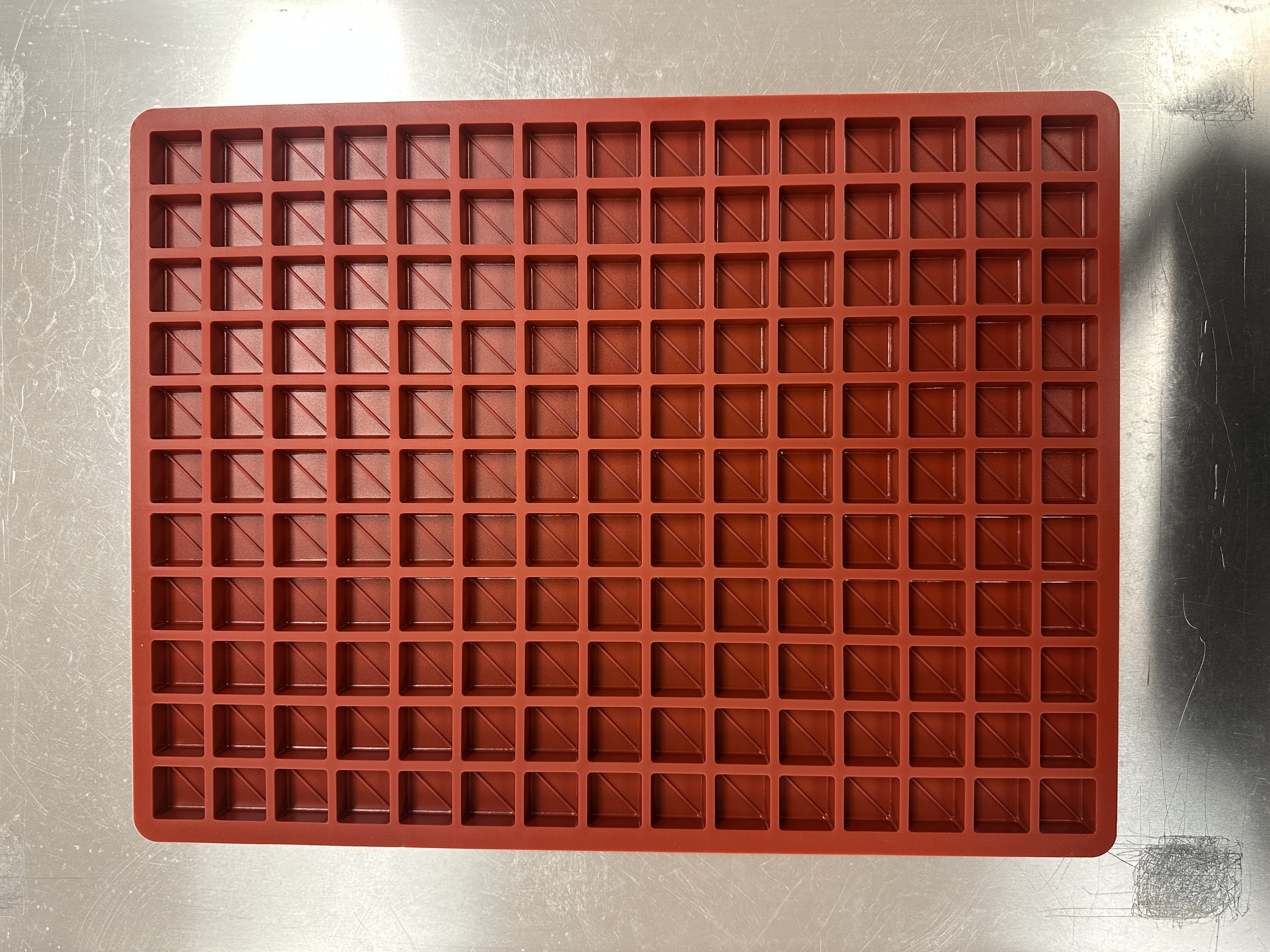

One complete fill produces up to 165 square gummies in a regular 15-column by 11-row arrangement.
02
Finished piece
Plan around a 21 × 21 × 10 mm gummy with a supplied estimated finished weight of 5.3 g.
03
Split detail

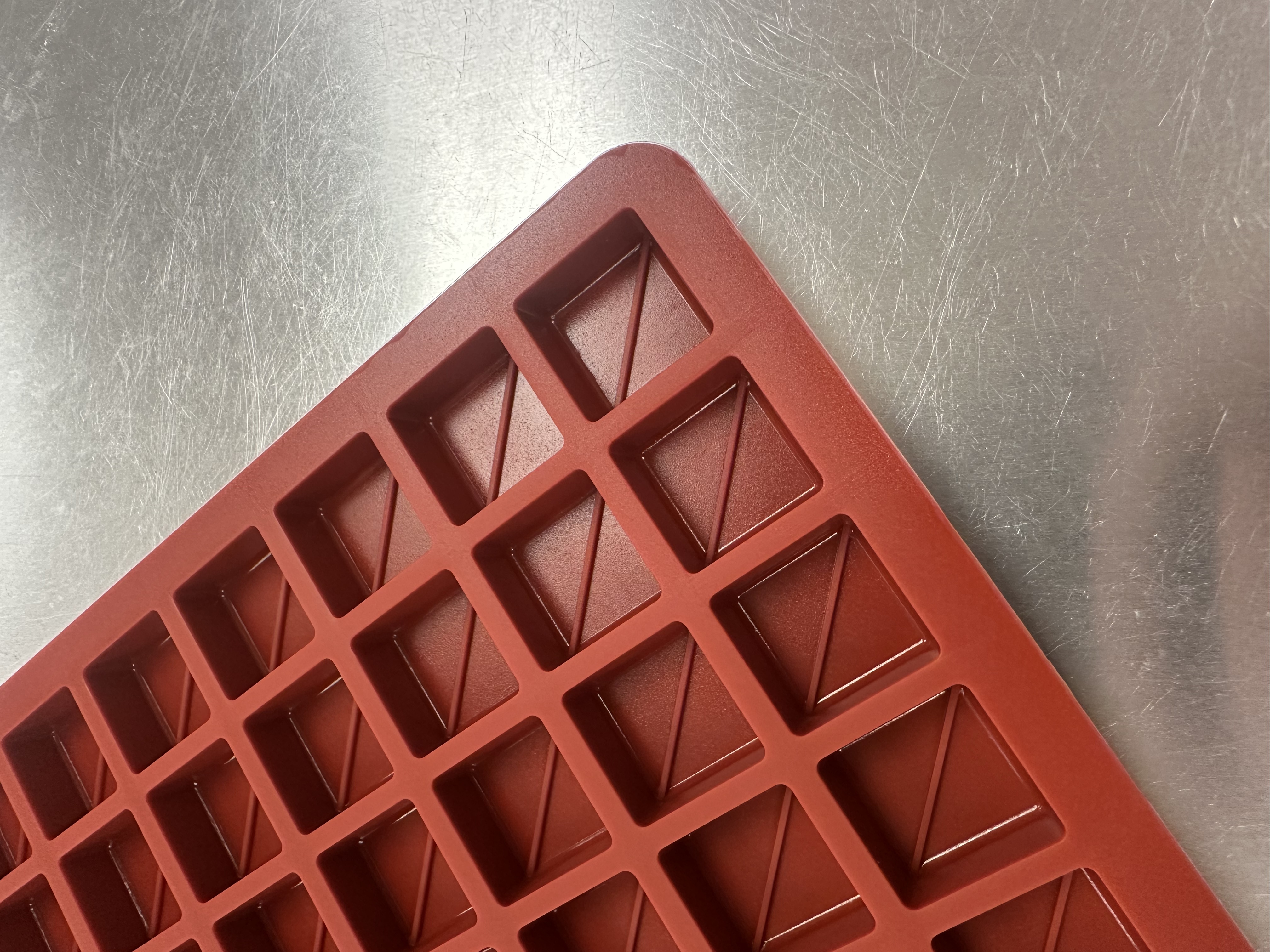

A diagonal score line visually divides each square gummy into two triangular sections.
04
Equipment fit
Check the 380 × 289 mm footprint against your tray, cooling space and depositor setup before ordering.
