MODEL 012 · Silicone molds
Square Shape Gummy Mold
200 cavities · 17 × 12 positions with four corners omitted
Product 012 forms up to 200 square gummies in one fill. The mold uses 17 columns × 12 rows of positions with the four corner positions omitted, matching the supplied factory drawing while preserving a compact production footprint.
The mold measures 409 × 290 × 13 mm. Each finished gummy measures approximately 20 × 20 × 11.5 mm, with a supplied cavity volume of 4.1 mL and estimated finished gummy weight of 5.3 g.
$45.0080 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
200Cavities
17 × 12Position grid
4.1 mLCavity volume
5.3 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 012
A high-capacity square profile with a 200-piece batch.
Product 012 forms up to 200 square gummies in one fill. The mold uses 17 columns × 12 rows of positions with the four corner positions omitted, matching the supplied factory drawing while preserving a compact production footprint.
The mold measures 409 × 290 × 13 mm. Each finished gummy measures approximately 20 × 20 × 11.5 mm, with a supplied cavity volume of 4.1 mL and estimated finished gummy weight of 5.3 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities200 cavities200 cavities
Layout17 columns × 12 rows; four corners omitted17 columns × 12 rows; four corners omitted
Mold size409 × 290 × 13 mm16.10 × 11.42 × 0.51 in
Gummy size20 × 20 × 11.5 mm0.79 × 0.79 × 0.45 in
Cavity pitch23.75 × 23.75 mm0.94 × 0.94 in
Cavity gap3.75 mm0.15 in
Silicone base1.5 mm0.06 in
Cavity volume4.1 mL0.14 US fl oz
Mold weight920 g32.45 oz
Estimated gummy weight5.3 g per piece0.19 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch, gap and base references are taken from the supplied factory drawing.

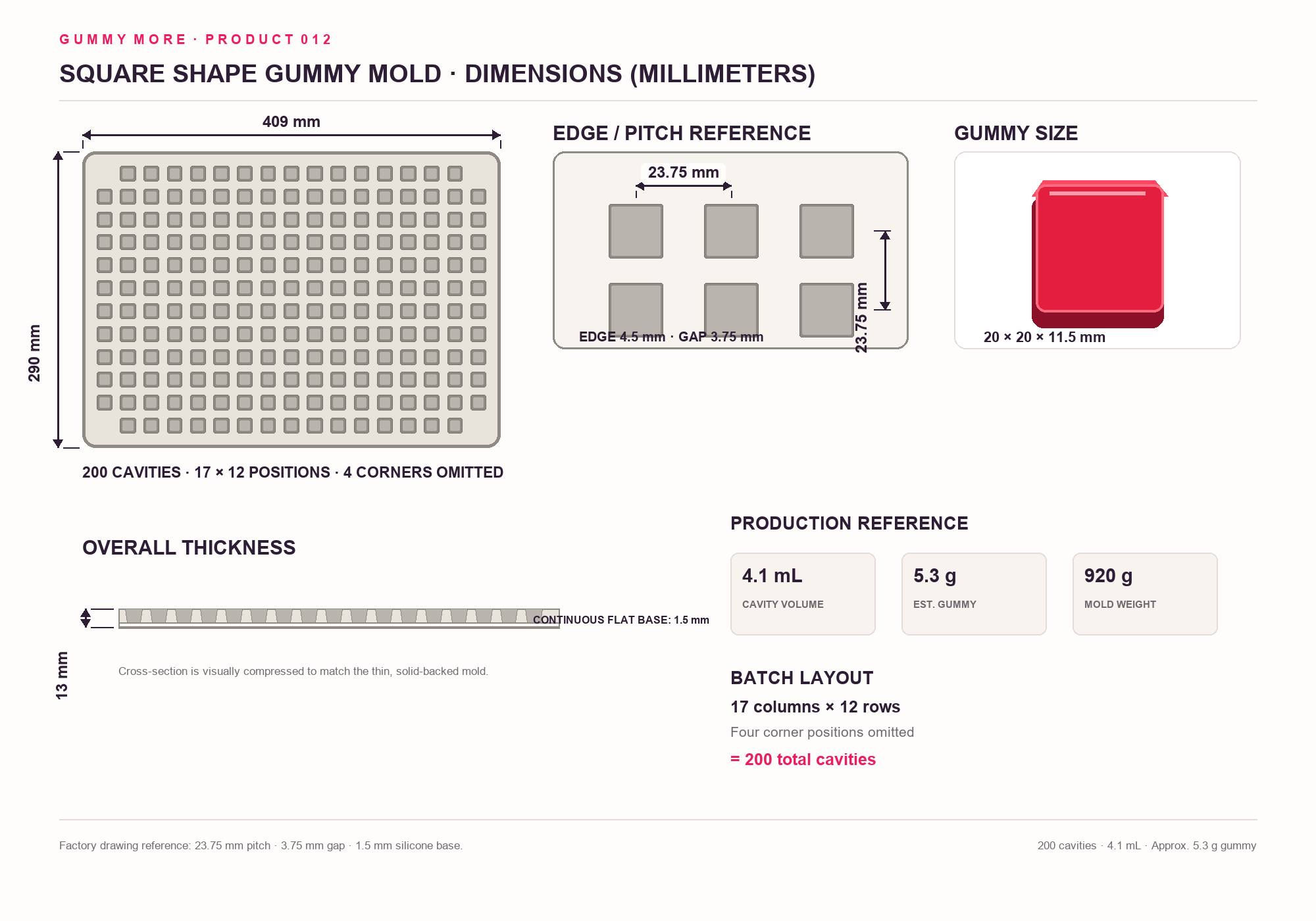

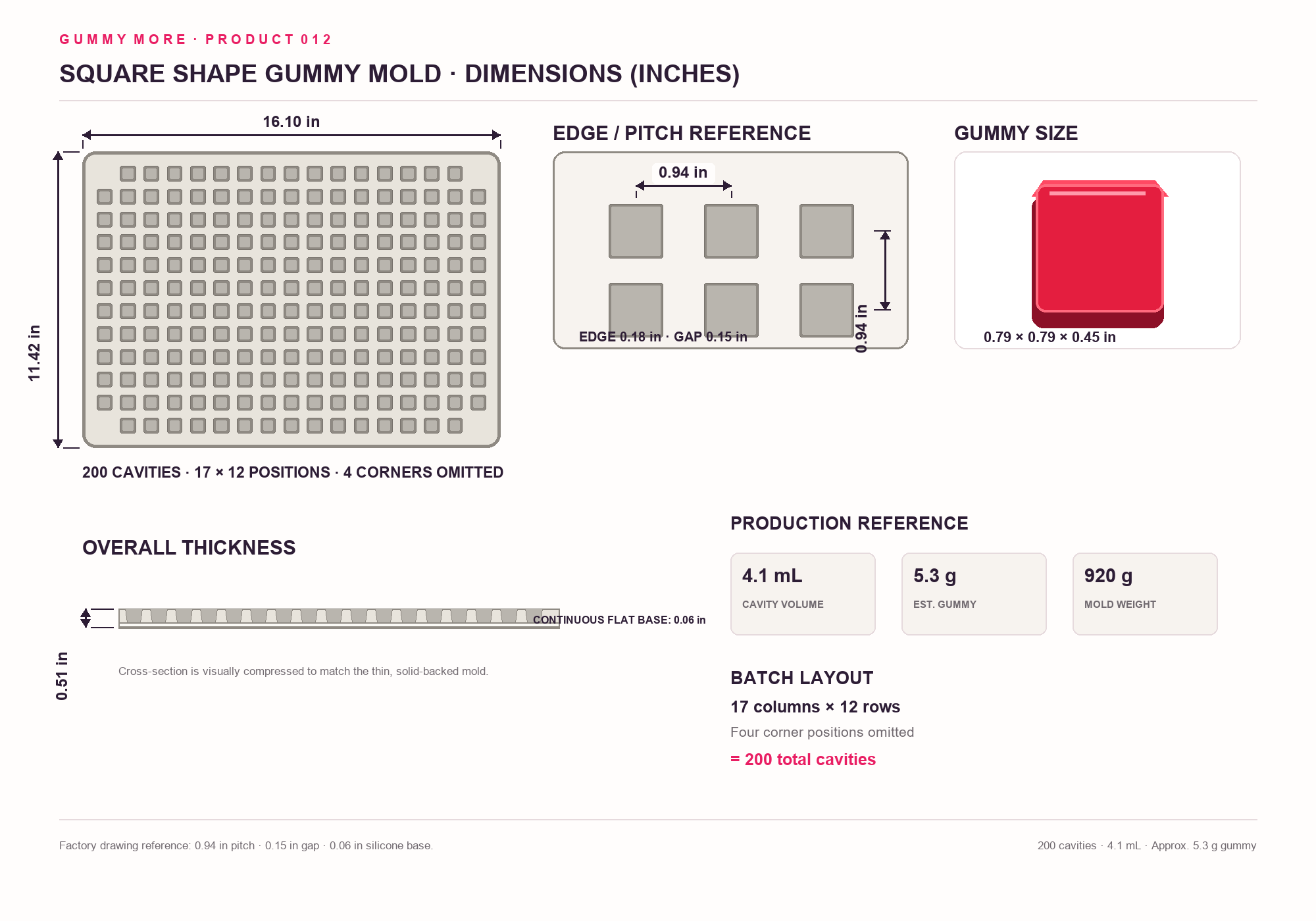

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry.
01
Batch capacity
One complete fill produces up to 200 square gummies across a 17-column by 12-row position grid with all four corners omitted.
02
Finished piece
Plan around a 20 × 20 × 11.5 mm gummy with a supplied estimated finished weight of 5.3 g.
03

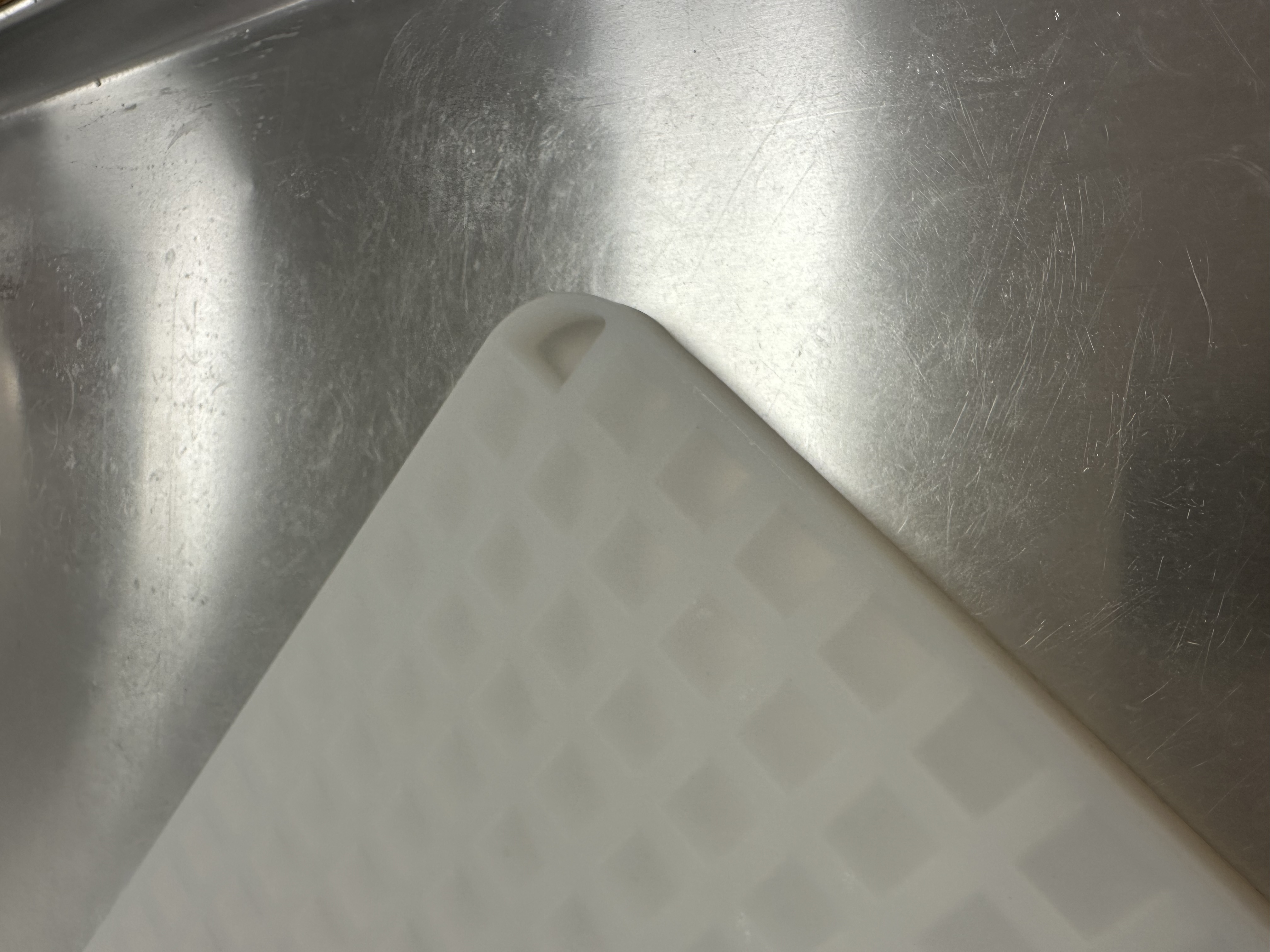

Solid backing
The mold has a continuous, flat reverse side that supports the complete cavity field.
04
Equipment fit
Check the 409 × 290 mm footprint against your tray, cooling space and depositor setup before ordering.
