Production-ready silicone moldsLive inventory · Secure checkout
MODEL 007 · Silicone molds
Toilet Paper Shape Mold
160 cavities · 10 × 16 production layout
Product 007 forms up to 160 toilet paper roll-shaped gummies in one fill. Its regular 10 × 16 layout provides a predictable batch count, while the supplied factory renders show the cylindrical roll, recessed center and friendly face details on the finished piece.
The mold measures 397 × 349 × 15 mm. Each finished gummy measures approximately 14 mm in diameter × 13.5 mm high, with a supplied cavity volume of 2.1 mL and estimated finished gummy weight of 2.7 g.
$28.0030 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
160Cavities
10 × 16Layout
2.1 mLCavity volume
2.7 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 007
A playful roll profile with a 160-piece batch.
Product 007 forms up to 160 toilet paper roll-shaped gummies in one fill. Its regular 10 × 16 layout provides a predictable batch count, while the supplied factory renders show the cylindrical roll, recessed center and friendly face details on the finished piece.
The mold measures 397 × 349 × 15 mm. Each finished gummy measures approximately 14 mm in diameter × 13.5 mm high, with a supplied cavity volume of 2.1 mL and estimated finished gummy weight of 2.7 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities160 cavities160 cavities
Layout10 columns × 16 rows10 columns × 16 rows
Mold size397 × 349 × 15 mm15.63 × 13.74 × 0.59 in
Gummy sizeØ14 × 13.5 mmØ0.55 × 0.53 in
Cavity pitch35 × 24.2 mm1.38 × 0.95 in
Nominal cavity-to-edge10 mm0.39 in
Cavity volume2.1 mL0.07 US fl oz
Mold weight440 g15.52 oz
Estimated gummy weight2.7 g per piece0.10 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch and edge references are taken from the supplied factory drawing.

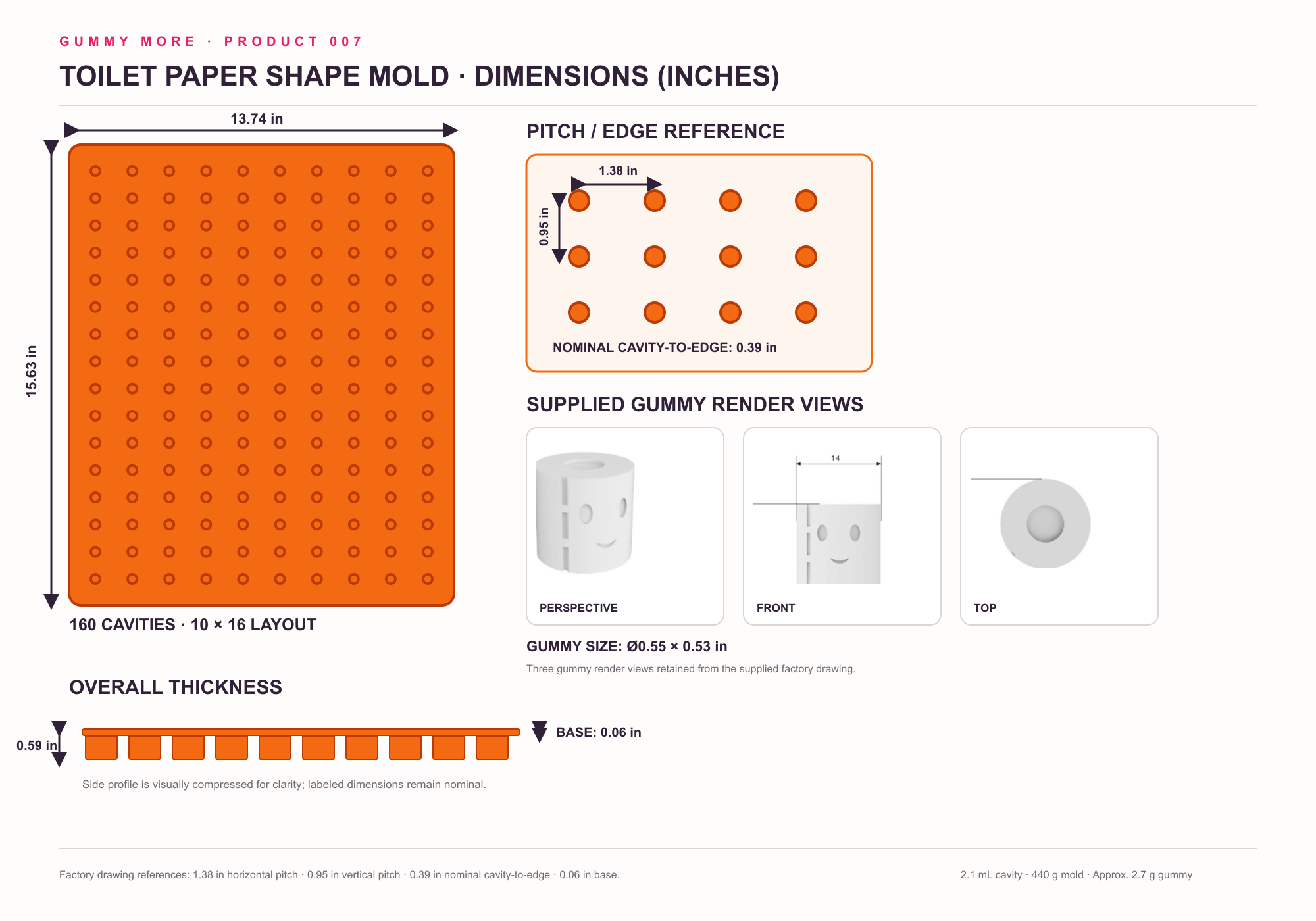

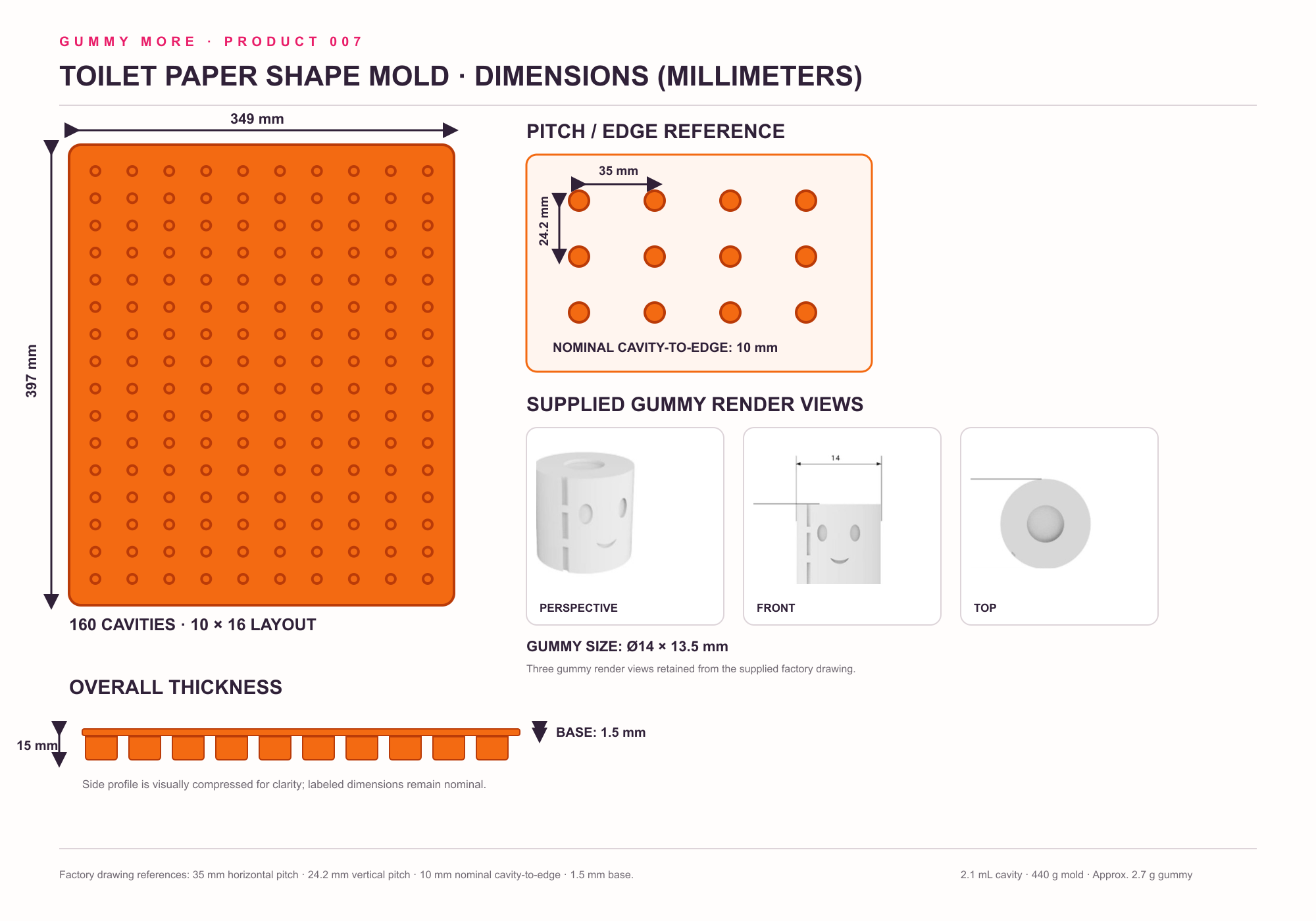

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 16 cavity layout.
01
Batch capacity
One complete fill produces up to 160 toilet paper roll-shaped gummies in a regular 10-column by 16-row arrangement.
02
Finished piece
Plan around a Ø14 × 13.5 mm gummy with a supplied estimated finished weight of 2.7 g.
03
Shape detail
The supplied factory renders show a cylindrical roll with a recessed center, perforation marks and a friendly face.
04
Equipment fit
Check the 397 × 349 mm footprint against your tray, cooling space and depositor setup before ordering.
