MODEL 008 · Silicone molds
Toilet Shape Mold
140 cavities · 10 × 14 production layout
Product 008 forms up to 140 toilet-shaped gummies in one fill. Its regular 10 × 14 layout provides a predictable batch count, while the supplied factory renders show the tank, lid, bowl and curved base details on the finished piece.
The mold measures 402 × 350 × 19.41 mm. Each finished gummy measures approximately 15 × 17.91 × 18 mm, with a supplied cavity volume of 1.5 mL and estimated finished gummy weight of 1.95 g.
$28.0030 in stock
Quantity1
Secure Stripe checkout. Shipping and applicable taxes are calculated at checkout.
140Cavities
10 × 14Layout
1.5 mLCavity volume
1.95 gEstimated gummy
Live inventoryOrder receipt by emailSecure Stripe checkout
Product 008
A detailed toilet profile with a 140-piece batch.
Product 008 forms up to 140 toilet-shaped gummies in one fill. Its regular 10 × 14 layout provides a predictable batch count, while the supplied factory renders show the tank, lid, bowl and curved base details on the finished piece.
The mold measures 402 × 350 × 19.41 mm. Each finished gummy measures approximately 15 × 17.91 × 18 mm, with a supplied cavity volume of 1.5 mL and estimated finished gummy weight of 1.95 g.
Technical mold specifications
Measurements you can plan around.
Metric values come from the supplied factory data. Inch values are converted at 25.4 mm per inch and rounded to two decimals.
SpecificationMetricImperial
Cavities140 cavities140 cavities
Layout10 columns × 14 rows10 columns × 14 rows
Mold size402 × 350 × 19.41 mm15.83 × 13.78 × 0.76 in
Gummy size15 × 17.91 × 18 mm0.59 × 0.71 × 0.71 in
Horizontal cavity pitch35 mm1.38 in
Nominal edge reference20 mm horizontal · 10 mm vertical0.79 in horizontal · 0.39 in vertical
Cavity volume1.5 mL0.05 US fl oz
Mold weight460 g16.23 oz
Estimated gummy weight1.95 g per piece0.07 oz per piece
Finished gummy weight is an estimate and varies with recipe density, solids content, cooking loss and final moisture. Pitch and edge references are taken from the supplied factory drawing.

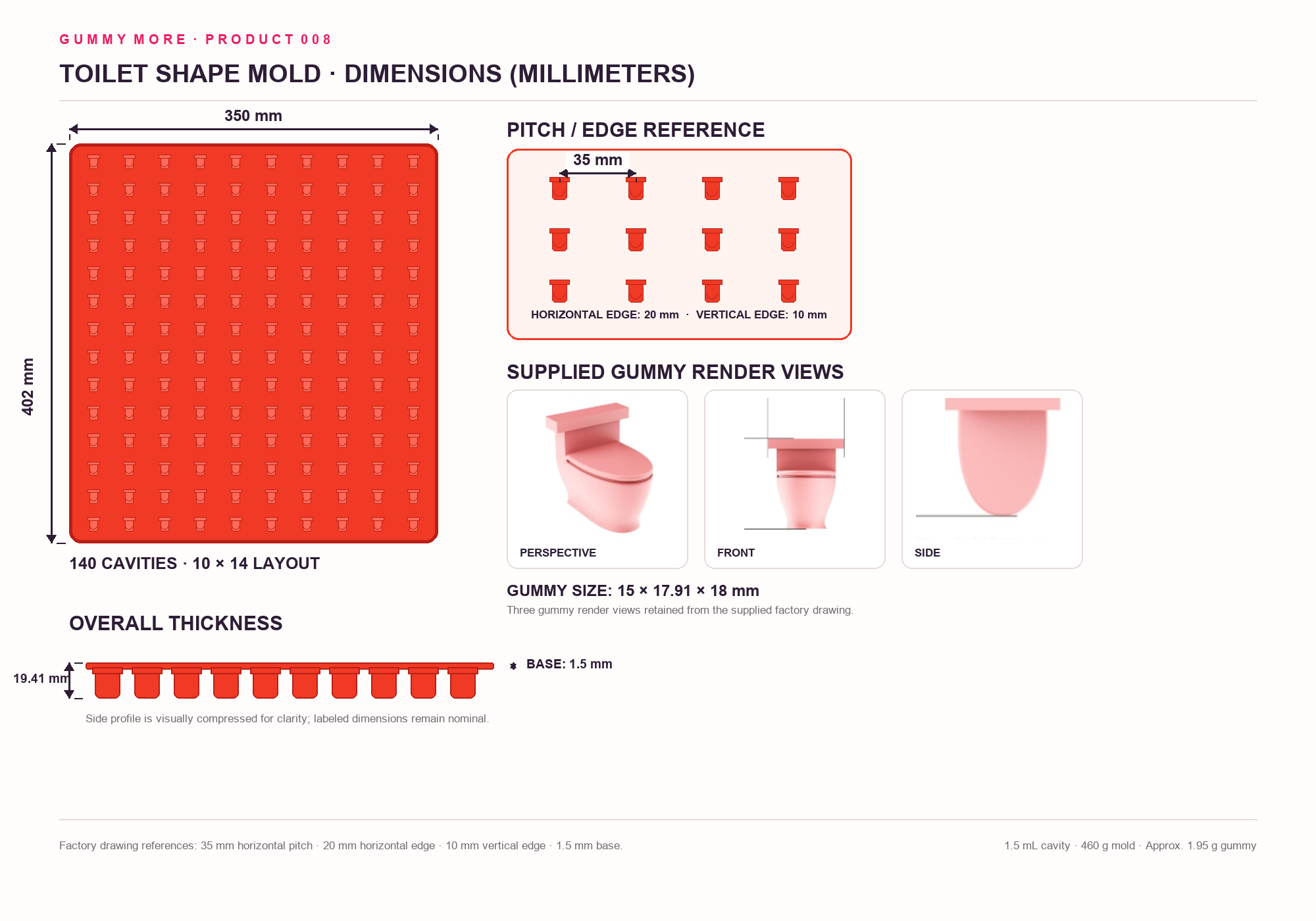

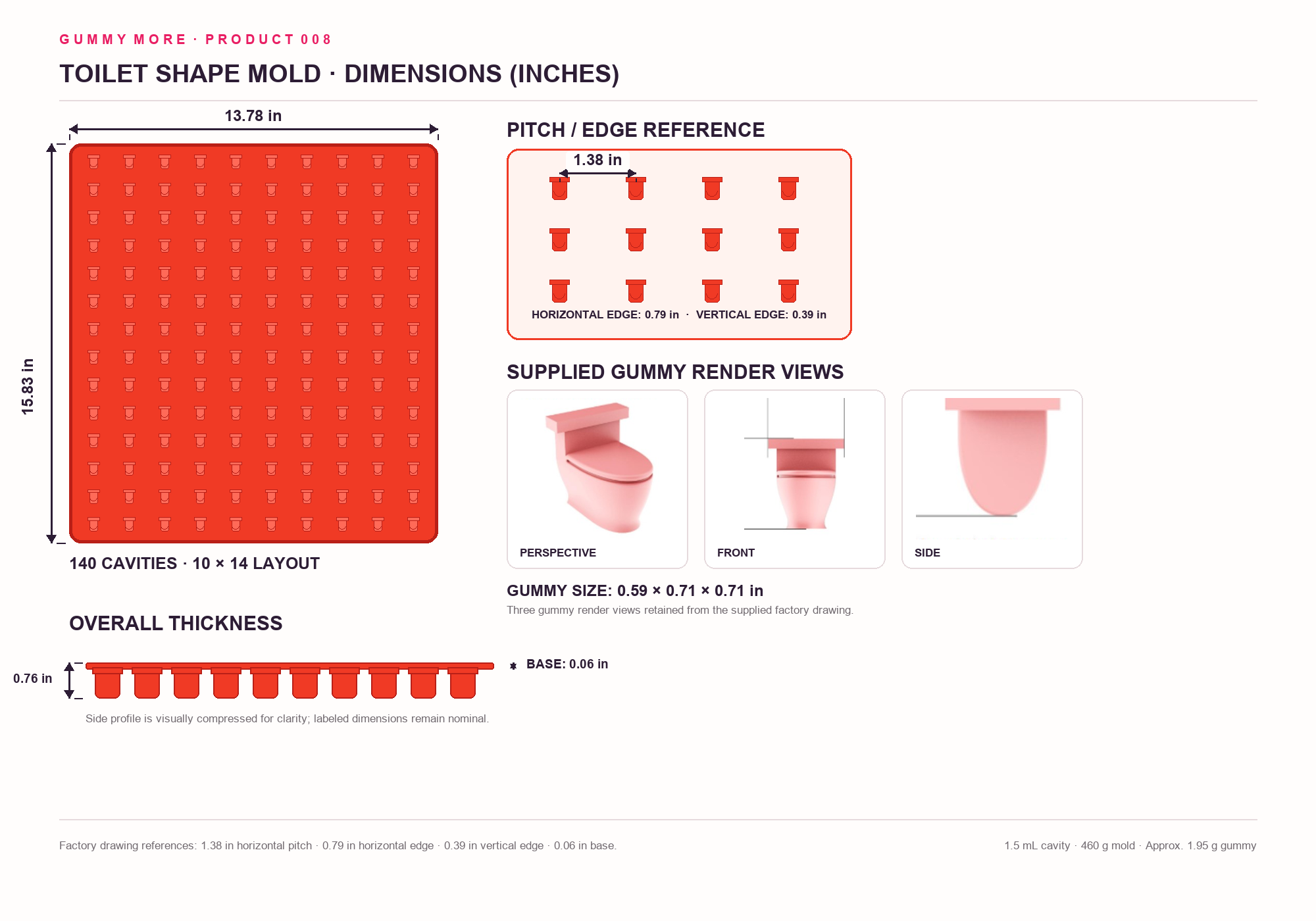

Engineering dimensions
Review in your preferred unit.
Both diagrams use the same supplied mold geometry and show the 10 × 14 cavity layout.
01

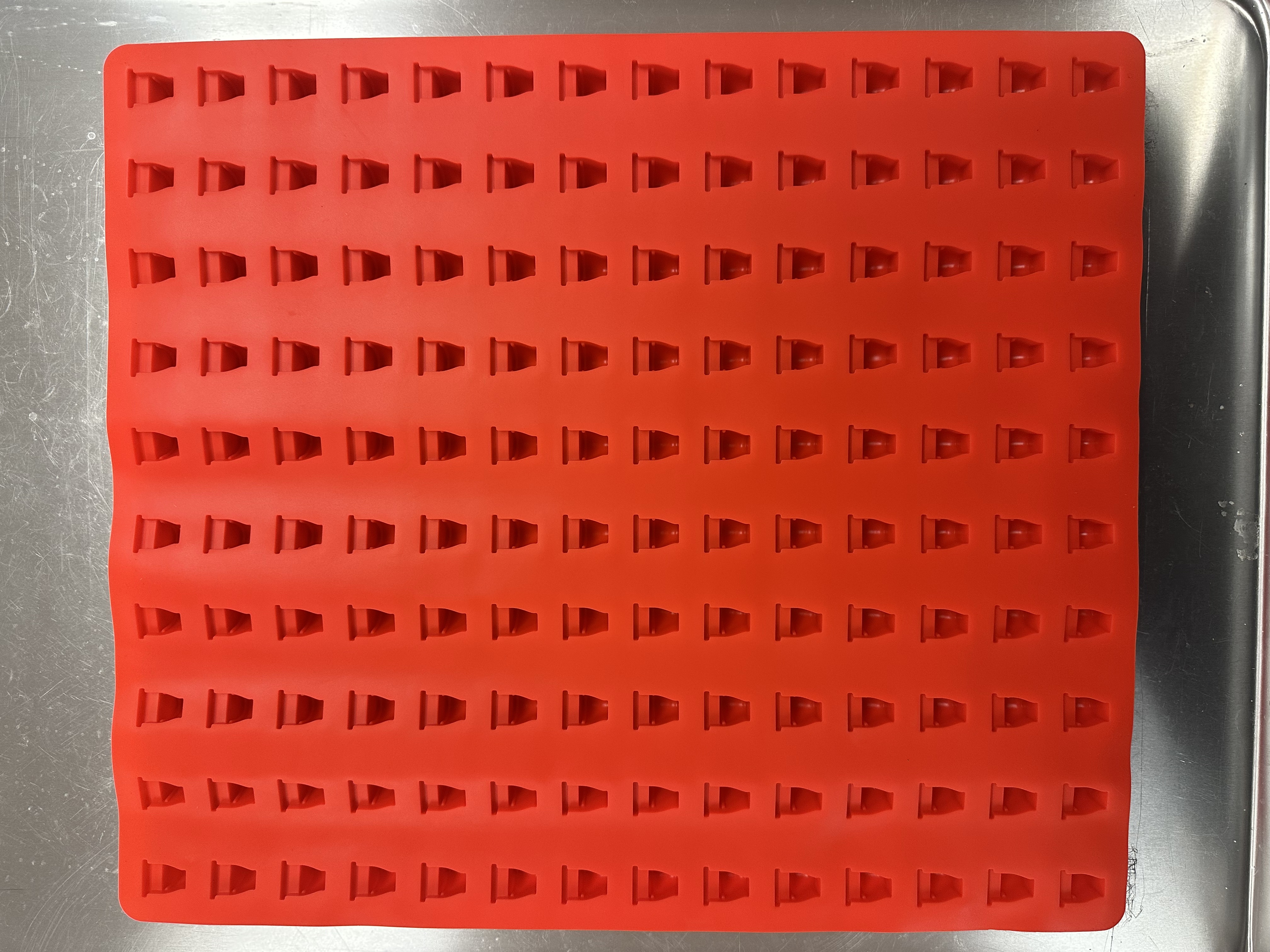

Batch capacity
One complete fill produces up to 140 toilet-shaped gummies in a regular 10-column by 14-row arrangement.
02
Finished piece
Plan around a 15 × 17.91 × 18 mm gummy with a supplied estimated finished weight of 1.95 g.
03
Shape detail
The supplied factory renders show the tank, lid, bowl and curved base details that define the finished toilet shape.
04
Equipment fit
Check the 402 × 350 mm footprint against your tray, cooling space and depositor setup before ordering.
